Description

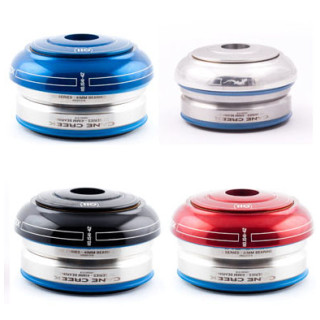

Cane Creek's engineers were tasked with developing a no-compromise, best-in-class premium headset.  With the introduction of our 110-Series, they did just that ? choosing optimal materials, engineering the most effective internals and designing the best aesthetics available in a headset.
The 110-Series offers the widest array of configurations available in a premium headset. With the flexibility to purchase complete assemblies or separate Tops and Bottoms, the 110-Series offers a premium solution for nearly all straight and tapered configurations on the market today. From Integrated (IS) Tops to External Cup (EC) Conversion Bottoms and everything in between, you can mix and match your headset purchase to best meet your needs.
Cane Creek ensures that whatever your headset requirement, we have a premium solution for you, backed by our 110-year warranty.

Technical Description IS41/28.6/H9/x|IS41/30/H1/x
Top Type IS - Integrated
Top Head Tube Inside Dia. 41.1mm
Stem Clamp Dia. 28.6mm
Top Stack Height 9mm
Top Bearing Type Top-quality, sealed stainless steel bearings
Bottom Type IS - Integrated
Bottom Head Tube Inside Dia. 41.1mm
Crown Race Seat Dia. 30.015mm
Crown Race Type Aluminum, Dual-Seal
Bottom Stack Height 1mm
Bottom Bearing Type Top-quality, sealed stainless steel bearings
Material 7075
Weight 66.72g



Specs:

Cups and Covers

7075 T-6 Aluminum construction Internally contoured and relieved to minimize weight and maximize strength

Crown Race

"Dual-Seal" crown race seal provides excellent seal efficiency with low friction

Top Cover

Low-friction upper bearing seal completely seals bearing from contaminants and is fully captured by top cover; no loose parts

Compression Ring

Updated ?carbon-friendly? captured compression-ring

Bearings

Top-quality, sealed stainless steel bearings

Interlok®

Interlok® spacer compatible

Manufacturing

Cut in Cane Creek?s Fletcher, NC, machining facility from U.S.- made aluminum
