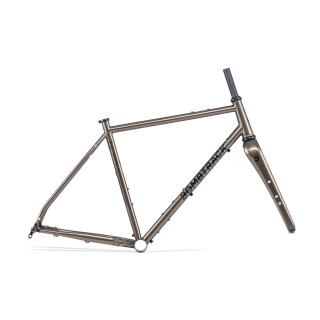

Our classic steel Audax bike. A slender steel frame, light carbon fork and all the mounts you could wish for. The perfect companion on any number of adventures, it’s happy going as fast or as far as you dare push it. A timeless performer, subtle tweaks like the inclusion of an integrated rear light mount help keeping it bang up to date.
Specs:
- Frame Columbus Cromor double butted, TA, rack / fender mounts, internal light cable routing, rear light mount, 86.5 mm T47 BB shell
- Fork Full carbon, TA, 1.1/2'' - 1.1/8'', with fender / cage mounts, internal hub dynamo cable routing
- Headset Sealed external aheadset, 1.1/2'' - 1.1/8'' Through axle 12 x 100 mm / 12 x 142 mm
- Seat clamp Bombtrack Prime 29.8 mm
- Weight frameset 2410 g frame (size M, incl. TA, hanger) / 530 g fork (300 mm steerer, incl. TA)
- Maximum rider weight 120 kg incl. luggage.
Build Info:
- BB standard T47 - 86.5 mm shell width
- Headset standard (S.H.I.S.) EC34 / 28.6 | EC44 / 40
- Headset crown race angle 36°
- Fork steerer inner diameter 23.6 mm
- Fork max tire clearance w/o fender 650B x 50C / 700C x 35C
- Frame max tire clearance w/o fender 650B x 47C / 700C x 35C
- Maximum chainring clearance 1x 44 T with 45 mm chainline
- Maximum chainring clearance 2x 53 / 39 T with 43.5 mm chainline
- Seat post diameter 27.2 mm
- Seat clamp diameter 29.8 mm
- Front derailleur clamp diameter 28.6 mm
- Frame front derailleur compatible yes
- Brake mount front FM 140 / 160
- Brake mount rear FM 140 / 160
- Maximum rotor clearance front 160 mm
- Maximum rotor clearance rear 160 mm
- Front through axle 12 mm x 100 mm, 1.5 thread pitch
- Rear through axle 12 mm x 142 mm, 1.5 thread pitch
- ISO testing standard Road Bike trailer approved Seat tube mounted child seat approved
Product safety information
Manufacturer information:
We Make Things GmbH
Richard-Byrd-Straße 12
Nordrhein-Westfalen
Köln, Deutschland, 50829
https://www.bombtrack.com/contact-bombtrack
https://www.bombtrack.com
| |
XS
|
|
|
|
XL |
| Sitzrohrlänge / Seat Tube Length (C-T) |
470 |
490 |
520 |
550 |
580 |
| Oberrohrlänge / Top Tube Length (horizontal) |
509 |
526 |
547 |
565 |
588 |
| Sitzrohrwinkel (°) / Seat Angle |
74,5° |
74,5° |
74° |
74° |
73,5° |
| Steuerohrwinkel / Head Angle (°) |
71,5° |
71,5° |
72° |
72° |
72° |
| Steuerohrlänge / Headtube Length |
110 |
130 |
150 |
170 |
190 |
| BB Drop |
68 |
68 |
68 |
65 |
65 |
| Kettenstrebenlänge / Chain Stay Length |
420 |
420 |
420 |
420 |
420 |
| Gabelvorbiegung / Fork Offset |
53 |
53 |
53 |
53 |
53 |
| Nachlauf / Trail |
59 |
59 |
56 |
56 |
56 |
| Radstand / Wheelbase |
987 |
1005 |
1018 |
1037 |
1055 |
| Überstandshöhe / Standover |
746 |
765 |
794 |
818 |
841 |
| Reach |
361 |
373 |
383 |
396 |
408 |
| Stack |
534 |
553 |
571 |
590 |
609 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
