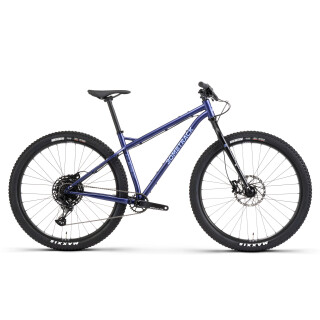

The Bombtrack Beyond+ is an uncompromising adventure bike designed for demanding off-road touring and bikepacking adventures. With its robust spec and thoughtful details, it offers the perfect balance between stability, versatility, and riding pleasure.
- Double-butted, suspension-corrected chromoly frame with rack and fender mounts
- Quad-butted down tube with differentiated wall thickness at the head tube transition
- Suspension-corrected Seido BPS chromoly steel fork with triple cage mounts
- Sram SX Eagle 12-speed drivetrain with 11-50 cassette
- Sram Level T hydraulic brakes
- Tubeless-ready WTB ST i35 rims with Maxxis Rekon 29" x 2.6" tires
Product safety information
Manufacturer information:
We Make Things GmbH
Richard-Byrd-Straße 12
Nordrhein-Westfalen
Köln, Deutschland, 50829
https://www.bombtrack.com/contact-bombtrack
https://www.bombtrack.com
| Laufradgröße / Wheelsize |
29" |
| Rahmen / Frame |
4130 double butted crmo, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell |
| Gabel / Fork |
Seido BPS 4130 crmo, double butted blades, 1 1/2" - 1 1/8", fender / rack / triple cage mounts, internal hub dynamo cable routing |
| Lenker / Handlebar |
BOMBTRACK TRAIL flat bar, 31.8 mm, 9° backsweep, 4° upsweep, 7 mm rise |
| Griffe / Grips |
BOMBTRACK Scroll grips |
| Vorbau / Stem |
BOMBTRACK TRAMP forged alloy stem, 3° |
| Steuersatz / Headset |
ZS44 / 28,6 | EC44 / 40 |
| Bremshebel / Brake Lever |
SRAM LEVEL hydraulic |
| Schalthebel / Shifters |
SRAM SX-EAGLE 12-speed shifter |
| Bremsen / Brakes |
SRAM LEVEL T hydraulic disc brakes with 200 mm F / 180 mm R rotors |
| Kurbel / Crank |
TRUVATIV STYLO 6K aluminium crank, Boost DUB |
| Innenlager / Bottom Bracket |
SRAM DUB BSA 73 mm |
| Pedale / Pedals |
- |
| Kette / Chain |
SRAM NX EAGLE chain, 1/2'' x 11/128'', 118L |
| Kassette / Cassette |
SRAM PG-1210 EAGLE 12-speed, 11 - 50 T |
| Umwerfer / Front Derailleur |
- |
| Schaltwerk / Rear Derailleur |
SRAM SX EAGLE, clutch, long cage |
| Nabe, vorn / Hub front |
Seido Grad Boost sealed hub, 6-bolt disc |
| Nabe, hinten / Hub Rear |
Seido Grad Boost sealed hub, 6-bolt discSeido Grad Boost sealed hub, 6-bolt discSeido Grad Boost sealed hub, HG Driver, 6-bolt disc |
| Spokes / Speichen |
Stainless Steel 14g |
| Felgen / Rims |
WTB ST i35 double wall, TCS 2.0, 32h |
| Sattel / Saddle |
Seido Origin saddle |
| Sattelstütze / Seat Post |
BOMBTRACK YEW alloy seatpost, 30.9 mm x 400 mm |
| Sattelklemme / Seat Clamp |
BOMBTRACK Prime, 34,9 mm |
| Reifen / Tire |
Maxxis Rekon 29" x 2,6" EXO TR, Dual Compound,tubeless ready |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
- |
| Licht / Light |
- |
| Gewicht / Weight |
- |
| |
|
| |
|
|
|
| |
S
|
|
|
|
| Sitzrohrlänge (C-T) / Seat Tube Length |
406 |
457 |
508 |
559 |
| Sitzrohrwinkel (°) / Seat Angle |
72° |
72° |
72° |
72° |
| Steurohrlänge / Headtube Length |
100 |
110 |
125 |
135 |
| Steurohrwinkel (°) / Head Angle |
68,5° |
68,5° |
68,5° |
68,5° |
| Oberrohrlänge / Top Tube Length |
575 |
598 |
622 |
651 |
| BB Drop |
70 |
70 |
70 |
70 |
| Kettenstrebenlänge / Chain Stay Length |
450 |
450 |
450 |
450 |
| Fork Offset |
51 |
51 |
51 |
51 |
| Trail |
87 |
87 |
87 |
87 |
| Radstand / Wheelbase |
1111 |
1135 |
1160 |
1188 |
| Überstandshöhe / Standover |
750 |
778 |
809 |
836 |
| Reach |
395 |
415 |
434 |
459 |
| Stack |
621 |
630 |
644 |
653 |
| Vorbaulänge / Stem Length |
50 |
50 |
50 |
50 |
| Kurbellänge / Crank Arm Length |
170 |
170 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - center) |
720 |
720 |
720 |
720 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
