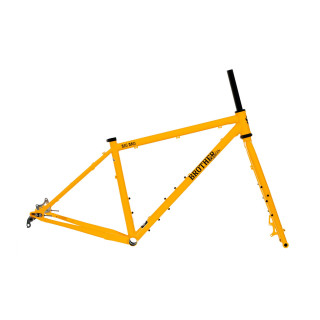

p> Our all purpose, tough as nails, 29er adventure frame – built to take you well off the beaten track and beyond. Whether you’re running a lightweight bikepacking setup, front and rear panniers for a ’round-the-world’ tour or stripped back to thrash some forest trails the Big Bro can handle it.
The frame is made out of tough 4130 double butted cro-mo tubing and comes with a 100mm suspension corrected fork, both with corrosion resistant ED coating applied. There’s clearance for big 29 x 2.6" tyres or up to 3 inch tyres if you’d prefer to go 27.5+. It features stealth dropper routing, rack mounts, bottle mounts on the seat tube, down tube and under the down tube for an extra bottle or storage. The forks also feature triple bottle mounts to fit further bottle cages or Anything Cages. S-bend chainstays with replaceable alloy thru axle sliding dropouts allow for geared or singlespeed setups.
Like all Brother products the Big Bro was rigorously tested. We took prototypes across the South Downs, through Snowdonia National Park and up to the Scottish Highlands. Most impressively a first-generation Big Bro also completed the 2016 Tour Divide – a 2,700 mile mountain bike race from Canada to New Mexico.
- Tubing: - 4130 Chromoly steel - double-butted main triangle, ED coated
- Brake compatibility; 51mm IS disc brake mount, 180mm max rotor size
- Dropouts: 12x148 mm thru axle (included)
- Seat post diameter: 30.9mm
- Seat clamp diameter: 33.1mm (included)
- Headset: 44mm, SHIS ZS44/28.6 upper, EC44/40 lower (not included)
- Front derailleur clamp diameter: 34.9 mm high direct-mount (adapter available separately)
- Bottom bracket shell: 73mm bottom bracket, ISO threaded
- Maximum tyre clearance: 29" x 2.6", 27.5" x 3.0" (not all drivetrain allow max clearance)
- Fork : 4130 Chromoly tapered unicrown fork, ED coated. 15x110mm thru axle (included)
- Full-length cable housing guides for derailleurs and brakes
- 3 sets bottle cage mounts on all sizes
- Chainring clearance: up to 44-30t double, 38t single
- Weight: medium (18") frame 2.6kg, fork (300mm steerer) 1.37kg
- Tested to ISO 4210 MTB standard
Headset not included!
Product safety information
Manufacturer information:
Brother Cycles
, ,
|
|
Medium (18) |
|
|
| Sitzrohr (Mitte-Mitte) / Seat Tube (C-T) |
406 |
457 |
508 |
559 |
| Oberrohrlänge / Top tube (effective) |
575 |
595 |
620 |
645 |
| Steurohrlänge / Head Tube Length |
95 |
100 |
110 |
125 |
| Sitzrohrwinkel (°) / Seat Angle |
73 |
73 |
73 |
73 |
| BB Drop |
60 |
60 |
60 |
60 |
| Steurohrwinkel (°) / Head Angle |
69,5 |
70 |
70,5 |
70,5 |
| min. Kettenstrebenlänge / min. Chainstay Length |
445 |
445 |
445 |
445 |
| Gabellänge / Fork Length |
483 |
483 |
483 |
483 |
| Gabelvorbiegung / Fork Rake |
46 |
46 |
46 |
46 |
| Stack |
598 |
605 |
616 |
630 |
| Reach |
392 |
410 |
432 |
452 |
| Überstandshöhe / Standoverheight |
782 |
810 |
840 |
871 |
| Radstand / Wheelbase |
1083 |
1098 |
1118 |
1144 |
