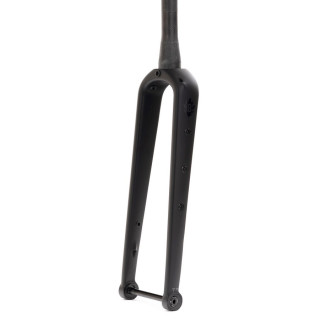

We developed the new Brother Carbon Gravel Fork as the perfect pairing for our Mehteh frameset, however it can be purchased separately as an upgrade for a wide range of other gravel bikes. For 2022 we updated the fork with improved triple cage mounts on both fork blades, internal Dynamo routing and a flip-chip dropout to allow you to adjust the rake of the fork. We have also increased the clearance to allow you to run large volume tyres up to 650b x 2.2″ / 700c x 50
- Axis to crown - 398 mm
- Offset - 47/52mm
- Steerer - 300 mm, conical 1 1/8 - 1 1/2"
- Tire clearance - 700c x 50, 650b x 56
- Hub spacing - 100 mm
- Weight (uncut) - 550 g (excluding axle)
- Brake compatibility - flat mounting, max. 160 mm rotor
- Triple cage brackets - max. Load 1.5 kg per screw (total 4.5 kg per fork blade) not compatible with front racks
- 100x12mm thru axle (M12x1.5TP, 120 mm length) included
