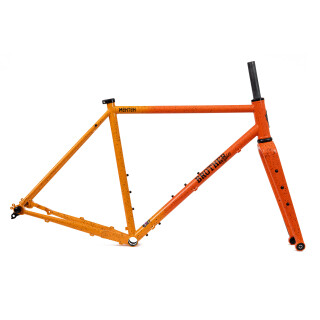

The Mehteh is our Reynolds 725 steel gravel frame – a fast and agile drop bar bike, designed for long days in the saddle on varied terrain. We’ve pushed the tyre clearances beyond what you’d find on the average gravel bike giving the option of taking your ride even further off-road. Whether that’s an after work gravel dash or a full blown bikepacking adventure.
The personality of the Mehteh is reflected in its name – a Himalayan word for the mountain dwelling Yeti which literally translates as “Man Beast”! The newest Version Comes with UDH compatible rear drop Outs allwing to run either s Standard rear mech or one of SRAMs new full Mount derailleurs.
The Mehteh is constructed out of Reynolds 725 steel; a heat treated tubing famed for its strength and weight saving properties and an ideal material for the challenges of gravel riding and bikepacking. This is now matched with the newly updated Brother carbon gravel fork up front – featuring full carbon construction, fender mounts and triple cage mounts on each fork blade. The frame and fork have clearance for up to 650b x 2.2" or 700c x 50 tyres to help you through the rough stuff.
Other features include thru-axle flat-mount dropouts, a replaceable derailleur hanger, 3 x bottle cage mounts and stealth dropper post routing.
- Frame tubing: Reynolds 725 heat treated chromoly double-butted main triangle, ED coated
- SRAM UDH type hanger
- Brake compatibility: flat mount, 160mm max rotor size
- Rear Dropouts: 12x142mm TA (included)
- Seat post diameter: 27.2mm
- Seat clamp diameter: 30mm (included)
- Headset: 44mm, ZS44/28.6 upper, EC44/40 lower (not included)
- Front derailleur clamp diameter: 28.6mm
- Bottom bracket shell: 68mm bottom bracket, ISO threaded
- Maximum tyre clearance: 700c x 50mm, 650b x 2,2"
- Fork: 1.5" – 1.1/8" tapered steerer carbon/alloy disc fork, mudguard mounts Dynamo routing and flip chip dropouts, 12x100mm TA (included)
- Full-length cable housing guides for derailleurs and brakes
- Stealth dropper post routing
- 3 sets bottle cage mounts on all sizes
- Rear rack and mudguard mounts
- Chainring clearance: up to up to 52-39-30t triple, 50-34t double, 48t single
- Frame weight (medium): 2.3kg
- Fork weight (uncut steerer): 0.55kg
Product safety information
Manufacturer information:
Brother Cycles Ltd,
Brogdale Farm, Brogdale Rd
Faversham, Vereinigtes Königreich, ME13 8XZ
info@brothercycles.com
https://www.brothercycles.com
| Größe /Size |
xSmall |
Small |
Medium |
Large |
X-Large |
XX-Large |
| Sitzrohr /Seat Tube (C-T) |
490mm |
510mm |
530mm |
550mm |
570mm |
590mm |
| Oberrohr /Top Tube (C-C) |
510mm |
527mm |
543mm |
558mm |
573mm |
588mm |
| Oberrohr effektiv /Top Tube (Effective) |
525mm |
544mm |
561mm |
576mm |
591mm |
606mm |
| Steuerrohr / Head Tube |
110mm |
125mm |
140mm |
160mm |
180mm |
200mm |
| Steuerrohrwinkel / Head Angle |
70.5 |
71 |
71.5 |
71.5 |
71.5 |
71.5 |
| Sitzwinkel/ Seat Angle |
74 |
73.5 |
73 |
73 |
73 |
73 |
| BB Drop |
70mm |
70mm |
70mm |
70mm |
70mm |
70mm |
| Kettenstreben / Chainstay |
430mm |
430mm |
430mm |
430mm |
430mm |
430mm |
| Gabellänge / Fork Length (A-C) |
398mm |
398mm398mm |
398mm |
398mm |
398mm |
398mm |
| Fork Rake |
47/52mm |
47/52mm |
47/52mm |
47/52mm |
47/52mm |
47/52mm |
| Stack |
545mm |
561mm |
577mm |
596mm |
615mm |
634mm |
| Reach |
369mm |
378mm |
385mm |
394mm |
403mm |
412mm |
| Radstand /Wheelbase |
1009mm |
1019mm |
1026mm |
1042mm |
1057mm |
1073mm |
