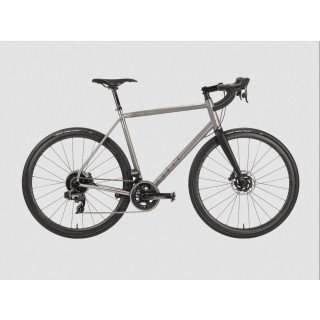

Curve Cycling - Belgie ULTRA Titanium Force AXS Complete Bike 56 cm
Available now!

Shipping time: 4 - 10 workdays

7.999,90 €

including 19% VAT. , (Komplettradversand)

Choose tax zone / country of delivery

Size
quantity Pcs
Manufacturers:
Item number:
7112-005

Our all-road titanium road bike has just gone ULTRA. After 4 years of stories and adventures, we've updated our Belgie Spirit and renamed it the Belgie Ultra. Meticulously designed and finely crafted for all-road Australian ultra-endurance riding. The Ultra can tackle cobbles and light gravel with confidence, helped by wider tyre clearance and a lengthened wheelbase. You’ll soon discover your spirit of adventure with this titanium all-round all-roader.

A SHORT HISTORY OF THE BELGIE SPIRIT

Curve's rich history was founded upon adventure cycling, and our bikes are often designed with a specific purpose or adventure in mind. After Jesse’s success in winning the 2015 Trans Am Bike Race, we wanted to take the Belgie name further and capture the spirit of Australian endurance cycling, so we designed the Belgie Spirit to take on the 5,545km Indian Pacific Wheel Race and celebrate the rich history of the Overlanders from the 1890’s. Released in 2016, the Spirit was optimised for long days in the saddle on all types of road. It’s been enjoyed by ultra-endurance cyclists, commuters, roadies, randonneurs and ordinary cyclists looking for a comfortable high-end road bike. Over the years this bike has seen many adventures, more than we can possibly recount without signing a book deal. So with our accumulated knowledge and experience, we decided to refine and tweak the Spirit into a better version of itself, which we now call the ULTRA

Features:
  • Lighter & Sleeker New thinner 16mm seat stay tubing and a new tapered headtube results in sleeker frame design and considerable weight saving. At 1630g the Belgie Ultra 56 frame is 180g lighter.
  • Stability & All Day Geometry Longer chainstays and overall wheel base across all sizes, plus a taller stack and longer reach helps make the Ultra comfortable enough to enjoy all day.
  • Mind Your Toes Longer front-centre to minimise toe overlap with wider tyres.
  • Bigger Tyres Can fit up to 700 x 35C NOTE: We tested with Vittoria Terreno Zero 35C, some knobbly gravel tyres may not provide enough mud clearance.
  • More Load & a Bento Box We've incorporated Bento Box mounts on the top tube and increased the size of the front triangle, improving storage capacity for top tube frame bags and water bottles. Repositioning bottle cage mounts also aid with bags and bottle clearance.
  • Mech. vs Elec. Thanks to some clever engineering, the frame is now compatible with both electronic and mechanical running gear. So you can forever switch between eTap, Di2 or mechanical shifting options.

Specs:

  • Frame Titanium Curve Belgie Ultra
  • Fork CurveCarbon  700c Road Disc
  • 12mm Front & Rear Axles
  • T47 bottom bracket 68 mm
  • flat mount disc mount
  • SRAM Force AXS 2x12 groupset
  • Curve carbon all-road wheelset with DT Swiss 350 hubs



Laufradgröße / Wheelsize 700c
Rahmen / Frame Titanium Curve Belgie ULTRA
Gabel / Fork Curve 700c Road Disc
Lenker / Handlebar ZippService Course SL
Griffe / Grips Curve anti-shock
Vorbau / Stem Zipp Service Course SL
Steuersatz / Headset Curve Integrated 42/52cmm semi-internal
Bremshebel / Brake Lever SRAM Force eTap AXS
Schalthebel / Shifters SRAM Force eTap AXS 2x12
Bremsen / Brakes SRAM Force eTap AXS HRD / 160mm Rotor
Kurbel / Crank SRAM Force eTap AXS DUB 48/35t
Innenlager / Bottom Bracket Curve T47 DUB
Pedale / Pedals -
Kette / Chain SRAM Force 12x
Kassette / Cassette XG 1270 10-36t 12xt
Umwerfer / Front Derailleur -SRAM Force eTap AXS
Schaltwerk / Rear Derailleur -SRAM Force eTap AXS
Nabe, vorn / Hub front DT Swiss 350 Centre Lock
Nabe, hinten / Hub Rear DT Swiss 350 Centre Lock
Spokes / Speichen Sapim CX-Ray
Felgen / Rims Curve G4T 35 Carbon 24h
Sattel / Saddle Fi’zi:k Vento Argo R5
Sattelstütze / Seat Post Zipp Service Course SL
Sattelklemme / Seat Clamp Curve Alloy 31.8mm-
Reifen / Tyre Vittoria Rubino Pro TLR 700 x 30c
Schutzbleche / Mudguards -
Gepäckträger / Racks -
Licht / Light --
Gewicht / Weight 8,514 kg (56 cm)-
46 49 52
54
56
58
61
64
Sitzrohrlänge / Seat Tube Length (C-T)  460 490 520 540 560 580 610 640
Oberrohrlänge  / Top Tube Length (effektiv)  528 537 545 555 564 588 600 610
Sitzrohrwinkel (°) / Seat Angle 74° 74° 74° 74° 74° 73° 73° 73°
Steuerohrwinkel / Head Angle  (°)  70,5 71° 71,5° 72° 72° 72,5° 72,5° 72,5°
Steuerohrlänge / Headtube Length 125 135 148 170 196 220 240 250
BB Drop 75 75 75 75 73 73 73 73
Kettenstrebenlänge / Chain Stay Length 425 425 425 425 428 428 430 430
Radstand / Wheelbase 999 1004 1009 1015 1029 1038 1052 1062
Überstandshöhe / Standover (700x42)
Reach 376 381 386 389 392 398 404 411
Stack (incl. headset) 525 537 551 573 596 621 640 649
empfohlene Fahrergröße / Rider height Range 147-157 155-165 161-170 168-177 175-184 183-192 191-201 198-208

Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
