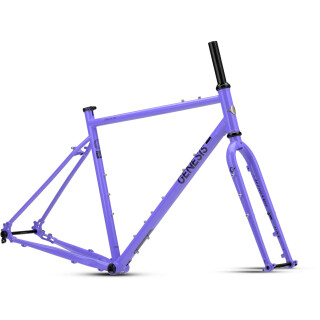

A thoroughly modern Croix de Fer, built ready for the next decade. Built entirely from 725 tubing, Reynolds mandrel butt and heat-treat this alloy so that thinner walls can be used compared to non-heat-treated steels. This makes it our ultimate workhorse, delivering a refined ride quality and for a modest weight penalty, keeps the pricing keen. Completely modernised, the 725 frameset adds 12mm thru-axles for compatibility with the latest wheelsets.
The ability to run up to a 45mm with fenders or 47 mm without increase the all-terrain ability of the Croix. Flat mounts for disc brakes, internal rear brake hose routing, a third bottle mount, rack and guard mounts and fixings for Anything Cages on the forks complete the package. Whether you're spending the money you've saved on a fancier wheelset, or a long weekend away on the bike, the Croix de Fer has got you covered.
- Frame Reynolds 725 Heat-Treated Chromoly 12mm Thru-Rear-Axle
- Fork Chromoly Disc Fork With Anything Cage Mounts With 12mm Thru-Axle
- Headset EC34 / EC34
- Fork Steerer Size 1 1/8”;
- Max Tyre Clearance : 700 x 47c
- Hub Size/Spacing Front 100mm x 12mm,
- Hub Size/Spacing Rear 142mm x 12mm
- Front Mech Size/Compatibility Band On 28.6mm
- Seat Tube/Clamp Size 27.2mm/ 29.8mm
- Dropper compatible
- MOUNTS Mudguard Mounts Yes Rack Mounts Yes Bottle Cage Mounts Yes Additonal Mounts Anything Cage Mounts
Product safety information
Manufacturer information:
Sportline HQ (Genesis Bikes)
Apollo Rise 1
Hampshire
Farnborough, Vereinigtes Königreich, GU14 0GT
info@genesisbikes.co.uk
https://www.genesisbikes.co.uk
| |
|
S
|
|
|
|
| Sitzrohr (Mitte-Mitte) / Seat Tube (C-C) |
470 |
500 |
530 |
550 |
580 |
| Oberrohrlänge / Top tube |
524 |
544 |
561 |
582 |
605 |
| Steurohrlänge / Head Tube Length |
115 |
135 |
155 |
175 |
195 |
| Sitzrohrwinkel (°) / Seat Angle |
74° |
73,5° |
73,5° |
73° |
72,5° |
| BB Drop |
73 |
73 |
73 |
73 |
73 |
| Steurohrwinkel (°) / Head Angle |
71° |
71° |
71,5° |
71,5° |
72° |
| Kettenstrebenlänge / Chainstay Length |
430 |
430 |
430 |
430 |
430 |
| Radstand / Wheelbase |
1007 |
1023 |
1035 |
1052 |
1063 |
| Gabelvorbiegung / Fork Rake |
50 |
50 |
50 |
50 |
50 |
| Überstandshöhe / Standover |
761 |
784 |
808 |
826 |
850 |
| Stack |
553 |
572 |
592 |
612 |
633 |
| Reach |
365 |
375 |
385 |
395 |
405 |
| Lenkerbreite / Handlebar width |
|
|
|
|
|
| Vorbaulänge / Stem length |
|
|
|
|
|
| Kurbellänge / crank length |
|
|
|
|
|
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
