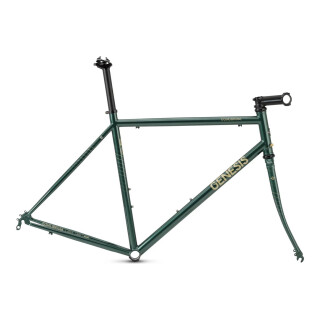

Stunning classical looks in an eminently practical package - a model day success story that proves steel is still a material to be reckoned with given the right application. The Equilibrium is designed to mix comfort, speed and efficiency in a package suited to the less-than-perfect tarmac of the UK. Build it to suit the riding you'll encounter - a wide range cassette for those steep Lakeland passes, mudguards for the long British summer, handbuilt wheels for the ultimate practicality - the choices are endless..
- Frame Reynolds 725 Heat-Treated Chromoly
- Fork Chromoly
- Weight 3.98kg
- Frame Weight Limit No Weight Limit
- Fork Steerer Size 1 1/8”;
- Max Tyre Clearance700 x 30c
- Hub Size/Spacing Front 100mm /Rear 135 mm
- Brakes: Long Reach
- Front Mech Size/Compatibility Band On 28.6mm
- Max Chainring Size 52/39t
- Seat Tube/Clamp Size 27.2mm/ 29.8mm
- MOUNTS Mudguard Mounts Yes Rack Mounts Yes Bottle Cage Mounts Yes Additonal Mounts Anything Cage Mounts
Seatpost and stem are not included in scope of delievery!
Product safety information
Manufacturer information:
Sportline HQ (Genesis Bikes)
Apollo Rise 1
Hampshire
Farnborough, Vereinigtes Königreich, GU14 0GT
info@genesisbikes.co.uk
https://www.genesisbikes.co.uk
| |
|
S
|
|
|
|
| Sitzrohr (Mitte-Mitte) / Seat Tube (C-C) |
470 |
500 |
530 |
550 |
580 |
| Oberrohrlänge / Top tube |
524 |
544 |
561 |
582 |
605 |
| Steurohrlänge / Head Tube Length |
115 |
135 |
155 |
175 |
195 |
| Sitzrohrwinkel (°) / Seat Angle |
74° |
73,5° |
73,5° |
73° |
72,5° |
| BB Drop |
73 |
73 |
73 |
73 |
73 |
| Steurohrwinkel (°) / Head Angle |
71° |
71° |
71,5° |
71,5° |
72° |
| Kettenstrebenlänge / Chainstay Length |
430 |
430 |
430 |
430 |
430 |
| Radstand / Wheelbase |
1007 |
1023 |
1035 |
1052 |
1063 |
| Gabelvorbiegung / Fork Rake |
50 |
50 |
50 |
50 |
50 |
| Überstandshöhe / Standover |
761 |
784 |
808 |
826 |
850 |
| Stack |
553 |
572 |
592 |
612 |
633 |
| Reach |
365 |
375 |
385 |
395 |
405 |
| Lenkerbreite / Handlebar width |
|
|
|
|
|
| Vorbaulänge / Stem length |
|
|
|
|
|
| Kurbellänge / crank length |
|
|
|
|
|
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
