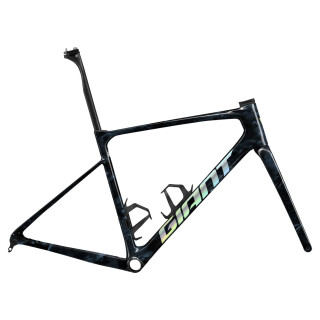

Go all out. The flagship frameset of the new Defy series is super-light and particularly flexible, representing the pinnacle of endurance performance on the road. The frame and fork are both made of high-quality GIANT Advanced SL Carbon, and the new SLR D-Fuse seatpost provides a slight bend (up to 7 mm) for better roadholding.
Technologies:
Advanced SL Composite Technology: This highest-grade carbon fiber is used to create an exclusive composite frame material, woven and processed in-house. Carbon nanotube (CNT) technology involves adding a microscopic polymer to GIANT's special resin blend. These CNT particles act as miniature support pillars, strengthening the composite layers. Frames treated with CNT are 14 times more impact-resistant than frames without CNT and are up to 100 g lighter.
Compact Road Design: Introduced by Giant in the 1990s with the professional team ONCE, the Compact Road Design revolutionized the look of high-performance racing bikes forever. A downward-sloping top tube creates smaller front and rear triangles for a lighter, stiffer bike. It makes it easier for riders of all sizes to achieve the perfect fit.
D-Fuse Seatpost: The patented D-shaped composite seatpost dampens vibrations for a smooth, compliant ride.
OverDrive Aero: The D-shaped steerer tube and corresponding spacers are located in the head tube of the all-new Propel range, providing an extremely aerodynamic, easier-to-maintain system of internally routed brake and shift cables.
PowerCore: The PowerCore bottom bracket shell is another feature that contributes to Giant's high frame stiffness. The wide fit of the bottom bracket cups and the good connection around the MegaDrive down tube increase the frame's rigidity.
Product safety information
Manufacturer information:
GIANT Deutschland GmbH
Mettmanner Str. 25
Nordrhein-Westfalen
Erkrath, Deutschland, 40699
https://www.giant-bicycles.com/de/kontakt
https://www.giant-bicycles.com/de
| Rahmengrößen / Sizes |
S, M, M/L, L, XL |
| Rahmen / Frame |
Advanced SL Carbon Rahmen, 12x142 mm Max. Reifenfreiheit: 40mm |
| Gabel / Fork |
Advanced SL Vollcarbon Gabel, OD Aero Gabelschaft, 12x100 mm |
| Farbe / Color |
Artic Blast |
| Sattelstütze / Seat Post |
Giant Contact SLR D-Fuse Carbon |
| Zubehör / Accesories |
2x Flaschenhalter |
Spezifikations-, Preis- und Farbänderungen vorbehalten.
PLEASE BE AWARE THERE CAN BE CHANGES DUE AVAILABILITY AND OTHER REASONS.
| |
S |
M
|
|
|
|
| Sitzrohrlänge (Mitte - Oberkante) / Seat Tube Length (C-T) (mm) |
445 |
480 |
515 |
535 |
565 |
| Sitzrohrwinkel / Seat Angle |
74° |
73,5° |
73° |
73° |
73° |
| Steurohrlänge / Headtube Length (mm) |
140 |
150 |
175 |
195 |
215 |
| Steurohrwinkel / Head Angle |
71,8° |
72,5° |
72,5° |
72,5° |
72,5° |
| Oberrohrlänge / Top Tube Length (mm) |
530 |
545 |
560 |
575 |
595 |
| BB Drop |
75 |
75 |
70 |
70 |
70 |
| Kettenstrebenlänge / Chain Stay Length (mm) |
420 |
420 |
420 |
420 |
420 |
| Gabelvorbiegung / Fork Rake (mm) |
50 |
50 |
50 |
50 |
50 |
| Gabelnachlauf / Trail (mm) |
63,4 |
58,6 |
58,6 |
58,6 |
58,6 |
| Radstand / Wheelbase (mm) |
994 |
998 |
1010 |
1025 |
1040 |
| Überstandshöhe / Standover (mm) |
733 |
762 |
796 |
814 |
841 |
| Reach (mm) |
375 |
380 |
384 |
393 |
402 |
| Stack (mm) |
541 |
558 |
577 |
596 |
615 |
| Vorbaulänge / Stem Length (mm) |
90 |
100 |
100 |
110 |
110 |
| Kurbellänge / Crank Arm Length (mm) |
170 |
172,5 |
172,5 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - Center) (mm) |
400 |
420 |
420 |
440 |
440 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
