Built to go faster. Whether you’re climbing, cornering or launching an attack, this all-new composite road racer is made for that moment. Lightweight, efficient, and integrated for speed, it’s engineered to give you a competitive edge in every situation...

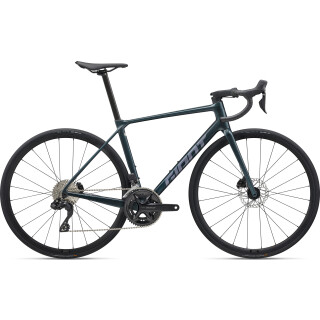

- Giant TCR Advanced 1 complete bike
- Shimano 105 Di2 2x11 groupset
Key Performance Factors
SYSTEM OPTIMISATION The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup..
WINNING EFFICIENCY Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count..
INTEGRATED AERODYNAMICS All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modelling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation..
Product safety information
Manufacturer information:
GIANT Deutschland GmbH
Mettmanner Str. 25
Nordrhein-Westfalen
Erkrath, Deutschland, 40699
https://www.giant-bicycles.com/de/kontakt
https://www.giant-bicycles.com/de
| Laufradgröße / Wheelsize |
700c |
| Rahmen / Frame |
Advanced Carbon Rahmen, 12x142 mm Max. Reifenfreiheit: 32mm |
| Gabel / Fork |
Advanced Vollcarbon Gabel, OD1 Gabelschaft, 12x100 mm |
| Lenker / Handlebar |
GIANT Contact |
|
| Griffe / Grips |
Giant Stratus Lite 2.0 Bar Tape |
| Vorbau / Stem |
GIANT Contact Aerolight |
| Steuersatz / Headset |
integrated |
| Bremshebel / Brake Lever |
Shimano 105 Di2 HRD |
| Schalthebel / Shifters |
Shimano 105 Di2 HRD |
| Bremsen / Brakes |
Shimano 105 Di2 HRD 160/140 mm |
| Kurbel / Crank |
Shimano 105, 52/36T Kettenblätter |
| Innenlager / Bottom Bracket |
Shimano PressFit |
| Pedale / Pedals |
- |
| Kette / Chain |
KMC X-12 |
| Kassette / Cassette |
Shimano 105, 11-34T |
| Umwerfer / Front Derailleur |
Shimano 105 Di2 |
| Schaltwerk / Rear Derailleur |
Shimano 105 Di2 12-x |
| Nabe, vorn / Hub front |
Giant P-R 2 Disc |
| Nabe, hinten / Hub Rear |
Giant P-R 2 Disc |
| Spokes / Speichen |
Sapim |
| Felgen / Rims |
GIANT P-R2 Disc Tubeless Ready |
| Sattel / Saddle |
GIANT Approach |
| Sattelstütze / Seat Post |
GIANT Variant Carbon |
| Sattelklemme / Seat Clamp |
- |
| Reifen / Tyre |
GIANT Gavia Course 1, 700x25c, Tubeless Ready, 60 TPI Auslieferung schlauchlos |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
- |
| Licht / Light |
- |
| Gewicht / Weight |
- |
| |
S |
M
|
|
|
|
| Sitzrohrlänge (Mitte - Oberkante) / Seat Tube Length (C-T) |
445 |
470 |
500 |
530 |
560 |
| Sitzrohrwinkel / Seat Angle (°) |
74° |
73,5° |
73° |
73° |
72,5° |
| Steurohrlänge / Headtube Length |
130 |
145 |
165 |
185 |
200 |
| Steurohrwinkel / Head Angle (°) |
72,3° |
73,5° |
73° |
73° |
72,5° |
| Oberrohrlänge / Top Tube Length |
535 |
550 |
565 |
580 |
600 |
| BB Drop |
69,5 |
69,5 |
67 |
67 |
67 |
| Kettenstrebenlänge / Chain Stay Length |
405 |
405 |
405 |
405 |
405 |
| Gabelvorbiegung / Fork Rake |
45 |
45 |
45 |
45 |
45 |
| Gabelnachlauf / Trail |
64 |
59,2 |
59,2 |
59,2 |
59,2 |
| Radstand / Wheelbase |
977 |
980 |
991 |
1006 |
1020 |
| Überstandshöhe / Standover |
722 |
743 |
771 |
798 |
822 |
| Reach |
383 |
388 |
393 |
402 |
412 |
| Stack |
528 |
545 |
562 |
581 |
596 |
| Vorbaulänge / Stem Length |
90 |
100 |
110 |
110 |
120 |
| Kurbellänge / Crank Arm Length |
170 |
172,5 |
172,5 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - center) |
400 |
420 |
420 |
440 |
440 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
