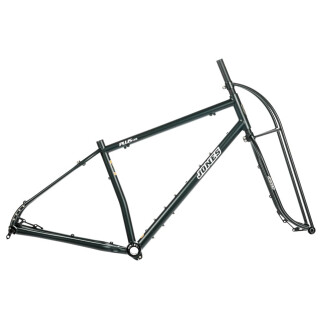

The Jones Plus LWB has proven to be one of the most versatile bikes around, winning awards for its abilities as a bikepacking bike as well as just about every other type of riding. And it's no wonder: the long wheelbase geometry puts you in a position that's comfortable and relaxed on the one hand, but very efficient and great for everything from technical trails to long road rides! Whether you're looking for a bike for touring, commuting, bikepacking, road riding or mountain biking, this frameset has it all!
Frame Features:
- Jones Plus LWB Geometry for a great ride in a variety of conditions
- Can be built as an exceptional mountain bike, road bike, gravel bike, touring bike, bikepacking bike, commuter bike or virtually any other type of bike you want
- Frame and fork are matched to each other
- Non-suspension corrected for a larger, stronger front triangle, shorter, stronger fork and a huge frame capacity for luggage/water bottles
- Clearance for 29 x 2.3-3.25" tires
- Rack and fender mounts
- Five water bottle mounts (six on large size)
- A triple boss style mount under the downtube
- Rack mounts on the upper seat stays for easy rack mounting
- Deep mounted rear disc brake mount for easy mounting of fenders and racks
Frame specifications:
- 68mm BSA threaded bottom bracket shell (the most common bottom bracket standard)
- Compatible with 1x or 2x "Boost" cranks
- Four eyelets for racks and fenders above the rear dropouts (the outermost eyelets double as water bottle mounts for additional water capacity)
- Full fender mounts on the seat and chainstay bridges
- Rear rack mounts above the dropouts and also on the seatstays
- Standard 148x12mm "Boost" thru axle spacing
- Triple cage mount under the downtube
- Two sets of standard water bottle mounts on top of the downtube (large also has one on the seattube)
- Chainstay mounted I.S. Rear disc brake mount for rigidity and easy mounting of fenders and racks
- Seat post size: 27.2mm
- Seat tube diameter: 31.8mm
- Standard 1 1/8" Head tube for external bearing headsets like the Jones H-Set
- Medium frame weight (with EBB, all bolts, clips, derailleur hanger and two TA bolts): 6 lb 9 oz / 2,973 g
- Large frame weight (with EBB, all bolts, clips, derailleur hanger and two TA bolts): 7 lb / 3,166 g
- Individually butted and heat treated 4130 chromoly tubing
- TIG welded
- Brazed in water bottle mounts
- Welded rack mounts
- Tapered and butted top tube for added stiffness and strength
- EBB for geometry adjustment and single speed chain tension
Jones Plus LWB Truss Fork:
- Comfortable ride with precise steering and no forward-backward flex under hard braking for great control
- Replaceable steerer tube
- Clearance for 29 x 2.3-3.25" or 27.5 x 3.8" High clearance tires
- Standard 150 x 15mm thru axle spacing (standard fat bike)
- Front hub compatible with fat bike dynamo hubs
Fork specifications:
- Straight 1 1/8" Steerer
- Uses a headset that does not use a clip-on crown race like a Jones H-set
- 345mm (size medium) 430mm (size large) steerer length
- Fork length: 445mm
- 3" / 76mm offset for Jones Plus LWB geometry
- 150 x 15mm fat bike standard thru-axle dropout spacing
- Weight: 3 lb 1 oz / 1396 g (size medium), 3 lb 3 oz / 1444 grams (size large), with bolt, axle and fork
