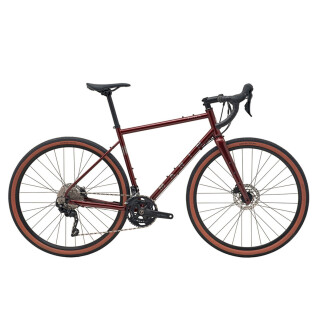

The Nicasio 2 takes you quickly and purposefully over all roads and even further: In addition to tarmac and asphalt, this bike also easily copes with potholed gravel paths and hilly terrain. The Nicasio series meets all your requirements, on and off the road. Lighter and more responsive frames, and of course premium equipment.
The top model Nicasio 2 from Marin has a double-butted SteezyR CrMo frame and a full carbon fork. There's also a Shimano GRX RX400 2x10-speed drivetrain, powerful Shimano hydraulic brakes in all conditions, and fast, grippy 700x45 Vee tires. Unlike the other bikes in the Nicasio family, the 2 features stiff and robust 12mm thru-axle dropouts and a universal derailleur hanger (UDH) for further upgrade options in the future.
What's new in 2025:
-
Frame: New design with more tire clearance, CrMo steel, 12x142mm thru-axle, flat-mount disc brakes, UDH derailleur hanger
-
Fork: Full carbon with tapered shaft, 12x100mm thru-axle, flat-mount disc brakes, mounting points for Luggage rack and mudguards
-
Mounting options: eyelets on the top tube, 3 eyelets per side on the fork
-
Drive: Shimano GRX 400 (2x10) with 46/30 chainring and 11-36 cassette
-
Wheels: Marin aluminum rims (19 mm inner width, tubeless compatible), 32H aluminum hubs Tires: Vee Tire Co Quickstyx 700x45C, tubeless compatible
-
Brakes: Shimano BR-RX400 hydraulic disc brakes
-
Cockpit: Marin butted handlebar with 16° Flare, Marin stem and aluminum seat post
-
Extras: New color, thru axles front and rear
Product safety information
Manufacturer information:
Marin Bikes
1450 Technology Lane, Suite 100
Kalifornien
Petaluma, Vereinigte Staaten, 94954
https://www.marinbikes.com/de/contact-us
https://www.marinbikes.com
Responsible person:
Xazony Maly BV
Marketing 8
Duiven, Niederlande, 6921 RE
account@xazony.com
| Laufradgröße / Wheelsize |
700c |
| Rahmen / Frame |
Series 2 CrMo, Beyond Road Geometry, Thru- Axle, Disc Brake, Integrated Headset, Fender and Rack Mounts |
| Gabel / Fork |
Marin Full Carbon w/ Taper Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Lenker / Handlebar |
Marin Butted Alloy, Compact 16° Flared Drop |
| Griffe / Grips |
Marin Comfort Tape |
| Vorbau / Stem |
Marin 3D Forged Alloy |
| Steuersatz / Headset |
FSA No.42/ACB |
| Bremshebel / Brake Lever |
Shimano Hydraulic w/ Integrated Shifters |
| Schalthebel / Shifters |
Shimano GRX 400 (2x10V) |
| Bremsen / Brakes |
Shimano BR-RX400 Hydraulic |
| Kurbel / Crank |
Shimano GRX 600, 46/30
|
| Innenlager / Bottom Bracket |
FSA MegaExo |
| Pedale / Pedals |
Kunststoff |
| Kette / Chain |
KMC X10 |
| Kassette / Cassette |
Shimano 10-Speed, 11-34T |
| Umwerfer / Front Derailleur |
Shimano GRX 400 (2x10V)Shimano GRX 400 (2x10V)Shimano GRX 400 (2x10V) |
| Schaltwerk / Rear Derailleur |
Shimano GRX 400 (2x10V)
|
| Nabe, vorn / Hub front |
Forged Aluminum Alloy, Disc, 32H, 12 x 100 mm thru-axle |
| Nabe, hinten / Hub Rear |
Forged Aluminum Alloy, Disc, 32H, 12 x 142 mm thru-axle |
| Spokes / Speichen |
Stainless Steel 14g, black |
| Felgen / Rims |
Marin Aluminum Double Wall, 19mm Inner, Disc Specific |
| Sattel / Saddle |
Marin Beyond Road Concept |
| Sattelstütze / Seat Post |
Marin Alloy, 27,2mm |
| Sattelklemme / Seat Clamp |
- |
| Reifen / Tyre |
Vee Tire Co Quickstyx, 700x45, Faltwulst, Tubeless-kompatibel |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
- |
| Licht / Light |
- |
| Gewicht / Weight |
- |
| |
|
| |
50 |
52
|
|
|
|
60 |
| |
|
|
|
|
|
|
| Sitzrohrlänge (C-T) / Seat Tube Length |
460 |
480 |
500 |
520 |
540 |
560 |
| Sitzrohrwinkel / Seat Angle |
74,5° |
74° |
74° |
74° |
74° |
73,5° |
| Steurohrlänge / Headtube Length |
120 |
135 |
150 |
165 |
180 |
195 |
| Steurohrwinkel / Head Angle |
70,5° |
71,5° |
71° |
71,5° |
71,5° |
71,5° |
| Oberrohrlänge (effektiv) / Top Tube Length (effective) |
524 |
538 |
547 |
561 |
577 |
600 |
| BB Drop |
76 |
76 |
76 |
76 |
76 |
76 |
| Kettenstrebenlänge / Chain Stay Length |
430 |
430 |
430 |
430 |
430 |
430 |
| Fork Offset |
50 |
50 |
50 |
50 |
50 |
50 |
| Radstand / Wheelbase |
1016 |
1016 |
1024 |
1040 |
1056 |
1075 |
| Überstandshöhe / Standover |
720 |
740 |
758 |
777 |
795 |
812 |
| Reach |
375 |
375 |
380 |
390 |
402 |
415 |
| Stack |
550 |
564 |
575 |
591,5 |
610,4 |
620 |
| Vorbaulänge / Stem Length |
75 |
75 |
90 |
90 |
90 |
90 |
| Kurbellänge / Crank Arm Length |
170 |
170 |
175 |
175 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - center) |
400 |
400 |
420 |
420 |
440 |
440 |
| |
|
|
|
|
|
|
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
