Named after one of the most iconic sections of coastline and Insta-inspiring gravel riding of the American West, the new Marin Headlands embodies everything about this beautiful and rugged terrain. A full unidirectional carbon chassis is purpose-built for multi-surface adventures, be they short days or long weeks in the saddle.The 1x specific construction of the frame means short chainstays that still fit up to 700x45mm/650Bx47mm tires, and paired with the longer top tube and shorter stems the bike takes cues from modern mountain bikes on technical off-road trail, while still maintaining a comfortable, fast, and efficient ride on flatter terrain. Internal housing routing and tons of mounts on the frame allow you to fit the bike with anything from water and tubes, to a full custom frame bag from your favorite maker using the attachments found around the front triangle, while conventional rack and fender mounts can transition the bike into a capable winter commuter.

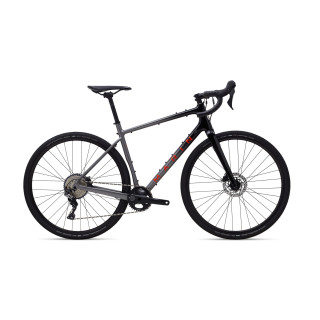

- Marin Bikes Headlands Complete Bike
- Carbon Frame and Fork
- Thru Axle Front and Rear
- Shimano GRX600 1x 11 drievetrain
- hydraulic Shimano GRX brakes
- tubeless compatible 700c wheelset
- Schwalbe G-One tyres 700 x 40c
- max tyre clearance 700 x 45c (or 650b x 50 with 2nd wheelset)
- frame ready for internal dropper seatpost
Product safety information
Manufacturer information:
Marin Bikes
, ,
| Laufradgröße / Wheelsize |
700c (650b möglich) |
| Rahmen / Frame |
Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts |
| Gabel / Fork |
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Lenker / Handlebar |
Marin Butted Alloy, Compact 12º Flared Drop, Flat Top |
| Griffe / Grips |
Marin Shock Absorbing Tape |
| Vorbau / Stem |
Marin 3D Forged Alloy |
| Steuersatz / Headset |
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Bremshebel / Brake Lever |
Shimano GRX Hydraulic w/ Shifter |
| Schalthebel / Shifters |
Shimano GRX RX600 1x11 |
| Bremsen / Brakes |
Shimano GRX Hydraulic Disc, 160mm Rotor |
| Kurbel / Crank |
Marin Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 40T |
| Innenlager / Bottom Bracket |
External Sealed Cartridge Bearings |
| Pedale / Pedals |
-Commute Pedals |
| Kette / Chain |
X11 |
| Kassette / Cassette |
Shimano CS-M7000 11/42T |
| Umwerfer / Front Derailleur |
- |
| Schaltwerk / Rear Derailleur |
Shimano GRX Shadow w/ Clutch |
| Nabe, vorn / Hub front |
Forged Aluminum Alloy, 6-Bolt Disc, 32H, 12x100mm Steckachse, |
| Nabe, hinten / Hub Rear |
Forged Aluminum Alloy, XD Driver, 6-Bolt Disc, 32H, 12x142mm Steckachse |
| Spokes / Speichen |
14g Black Stainless Steel |
| Felgen / Rims |
700c Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible |
| Sattel / Saddle |
Marin Beyond Road Concept |
| Sattelstütze / Seat Post |
Marin Alloy, 27.2mm |
| Sattelklemme / Seat Clamp |
- |
| Reifen / Tyre |
Schwalbe G-One Performance, 700Cx40mm, Folding Bead |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
- |
| Licht / Light |
-- |
| Gewicht / Weight |
|
|
|
|
49 |
52 |
|
|
|
60 |
| Sitzrohrlänge (Mitte - Oberkante) / Seat Tube Length (C-T) |
440 |
470 |
490 |
510 |
530 |
550 |
| Sitzrohrwinkel / Seat Angle (°) |
74,5° |
74° |
73,5° |
73,5° |
73,5° |
73,5° |
| Steurohrlänge / Headtube Length |
120 |
135 |
150 |
170 |
190 |
210 |
| Steurohrwinkel / Head Angle (°) |
70,5° |
71° |
71,5° |
71,5° |
71,5° |
71,5° |
| Oberrohrlänge / Top Tube Length |
522 |
535 |
545 |
565 |
595 |
615 |
| BB Drop |
76 |
76 |
76 |
76 |
76 |
76 |
| Kettenstrebenlänge / Chain Stay Length |
420 |
420 |
420 |
420 |
420 |
420 |
| Gabelvorbiegung / Fork Rake |
50 |
50 |
50 |
50 |
50 |
50 |
| Radstand / Wheelbase |
1010,2 |
1007,4 |
1007,7 |
1028,5 |
1059,2 |
1079,9 |
| Überstandshöhe / Standover |
711 |
725 |
741 |
758 |
775 |
792 |
| Reach |
370 |
372,8 |
|
386,4 |
411,4 |
425,8 |
| Stack |
550,3 |
565,7 |
581,8 |
600,8 |
619,7 |
638,7 |
| Vorbaulänge / Stem Length |
60 |
60 |
60 |
60 |
70 |
70 |
| Kurbellänge / Crank Arm Length |
170 |
170 |
175 |
175 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - center) |
420 |
420 |
420 |
440 |
440 |
440 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
