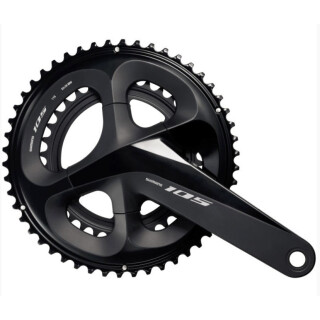

The revised Shimano 105 FC-R7000 crank combines low weight and efficiency without sacrificing rigidity. Their wider chainring spacing allows for greater chain skew on modern frames with 135 mm O.L.D.
- Optimal power transmission: Optimum ratio of weight and efficiency without compromising on rigidity
- Diverse options offer greater choice: “Rider Tuned” Performance with numerous switching combinations
- Greater frame compatibility: Sprocket with a wide pitch increases the chain distance on small sprockets and enables 410 mm chainstays to an installation width of 135 mm
Specifications:
- Model: FC-R7000
- Group: 105 R7000
- Colors: Silky Black | Spark Silver
- Weight: 713.4 g
- Rear switching levels: 11
- Compatible chain: LINKGLIDE, 11-speed HG
- Chainline: 43.5 mm
- Bolt circle diameter: 110 mm
- Spider/Chainring Arms: 4
- Q factor: 146 mm
- Recommended bottom bracket|Thread (normal): SM-BBR60
- Recommended bottom bracket|Press fit: SM-BB72-41B
