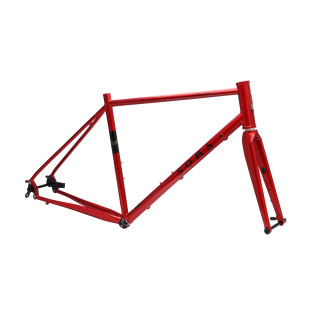

The Smoothie HP is the “high protein” version of our Smoothie road frame that was part of our line for almost 20 years. Extra large diameter, thin-wall Tange Prestige chromoly coupled with modern touches like thru-axles and compact geometry give this frame increased power transfer and road feel while still delivering a composed and plush ride at all speeds. The re-designed geometry combines a comfortable higher stack with a shorter wheelbase that rewards skillful riders.
Frame Features:
- Tange Prestige heat-treated double butted CrMo steel
- Extra oversized down tube and chainstays for greater pedaling stiffness
- Ovalized top tube for increased lateral stiffness and vertical compliance
- Size specific tubing (Larger diameter down tubes on the larger sizes)
- Comfortable high stack matched with a tighter wheelbase than the typical big brand endurance road frame
- Replaceable modular dropouts (12 x 142mm bolt-on thru-axle, fits flat mount disc brake)
- BSA Threaded bottom bracket shell - Rear rack/fender Mounts
- Max tire size: 700x32c with fenders Two water bottle boss sets
- 6 sizes: 48, 52, 54, 56, 58, 60
- In Candy Apple Red
Fork Features:
- Carbon Fiber
- 43mm rake (48mm on size 48 and 52cm)
- Fits 700x32 tires with fenders
- 12 x 100mm QR thru-axle, flat mount brake compatible
- Tapered alloy steerer
- Internal cable routing
Specifications Frame:
- Seatpost: 27.2mm
- Seat collar: 29.8 or 30.0mm
- Front derailleur: 28.6mm, bottom pull
- Rear hub thru-axle: 142mm x 12mm
- Headset SHIS: ZS44/28.6 | EC44/40)
- Max.Tire Fit: 700c x 35mm (certain front derailleurs may reduce tire clearance)
- Min. Tire Recommendation: 700c x 23mm
- Max chainring fit: 52-39-30t, 53-39t,
- Bottom bracket shell: 68mm wide, English threads
- Compatible with downtube shifters
- Rear disc brakes: 140mm rotors (160mm max), Flat mount
- Also compatible with 57mm reach road rim brake
- Rear rack fitting: We recommend a rear rack designed for short chainstay bikes like our Rakku to reduce heel strike with large bags.
- Recommended fender fit: 37-45mm wide; ideally 10mm wider than tire width
