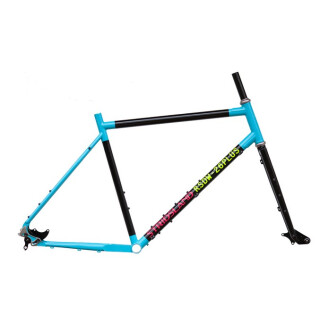

The Beachcomber is a dream mountain bike with a modern retro style and 26-inch wheels. An all-terrain bike, if you will. Or an MTBMX, because it's an attempt to combine BMX and MTB into one functional bike. Its geometry is scientifically proven and optimizes riding fun and adventure through short chainstays, a spacious front triangle, and enormous tire clearance (26 x 2.8 inches). It also offers numerous mounting options for bottle cages, adjustable dropouts, and discreet cable routing for dropper seatposts. Only the most common standards are used, such as... For example, a straight 1 1/8-inch head tube, a threaded BSA bottom bracket, IS disc brake mounts, and external cable routing.
Specifications:
- Rear dropout spacing: 12 x 142 mm (without Boost) (135 mm quick-release inserts available)
- Recommended tightening torque for rocker arm bolts: 25–30 Nm
- Front dropout spacing: 15 x 100 mm (without Boost)
- 73 mm bottom bracket shell with BSA threading
- Maximum chainring: 38 Teeth at 49 mm chainline
- 1 1/8" head tube for EC34 headsets
- 27.2 mm seatpost and 30.0 mm seat clamp (steel frame)
- IS disc brake mounts front and rear
- Recommended brake rotors: 180 mm, compatible with 160–203 mm
- 4130 chromoly steel, double-butted front triangle, stainless steel dropouts
- M5 and M8 stainless steel bolts
- Includes Barnacle Lite suspension fork and front and rear axles
- Approx. 4.5 kg Large frame, fork (300 mm full-length steerer tube), inserts, axles, mounting hardware
- Headset not included
Tire size:
- 26 x 2.8 – The Beachcomber impresses with its 26+ platform
- also compatible with 26 x 2.3 tires or a maximum of 27.5 x 2.5 ideally suited
Geometry:
-
S (50): 165–175 cm (5.5″–5.9″)
-
M (54): 175–185 cm (5.9″–6.1″)
-
L (58): 185–195 cm (6.1″–6.5″)
Recommendation: Choose the smaller size Choose size 1 if you prefer a sportier and more aggressive bike with more room for a dropper seatpost and riser handlebars. Choose the larger size if you need more storage space for a frame bag and possibly a swept-back handlebar.
Product safety information
Manufacturer information:
STRIDSLAND ApS
Gurrevej 380A
Kvistgård, Dänemark, 3490
info@stridsland.com
https://www.stridsland.com
| |
S (50 cm)
|
|
L (58 cm) |
| |
|
|
| Sitzrohrlänge / Seat Tube Length |
450 |
490 |
530 |
| Oberrohrlänge / Top Tube Length (effective) |
500 |
540 |
580 |
| Sitzrohrwinkel (°) / Seat Angle |
74° |
74° |
74° |
| Steuerohrwinkel (°) / Head Angle |
70° |
70° |
70° |
| Steuerohrlänge / Headtube Length |
120 |
160 |
200 |
| BB Drop |
35 |
35 |
35 |
| Kettenstrebenlänge / Chain Stay Length |
415 |
415 |
415 |
| Gabelvorbiegung / Fork Offset |
43 |
43 |
43 |
| Radstand / Wheelbase |
1030 |
1072 |
1104 |
| Trail |
81,8 |
81,8 |
81,8 |
| Reach |
395 |
423 |
440 |
| Stack |
520 |
557 |
595 |
| |
|
|
|
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
