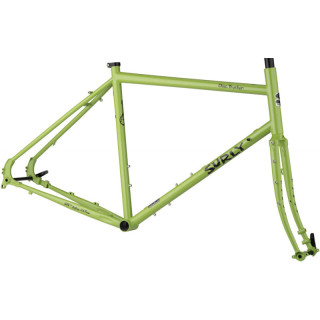

Surly - Disc Trucker Frameset Pea Lime Soup - 700c

Surly - Disc Trucker Frameset Pea Lime Soup - 700c

SKU: 6962
Category: Randonneur / MTB / 27,5+ / 29"
Manufacturers: Surly

Size

Item currently out of stock

item not available, delievery time on request

This item has variations. Please select the requested variation.

Description
Notify me when this item is available

Disc Trucker enjoys the same reputation as Long Haul Trucker: It’s one of the best-riding and most value-packed drop bar touring bikes out there. Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.

That’s where the newly redesigned Disc Trucker comes in. Packing reliable stopping power and a horde of useful mounting points, shortened chainstays up the Disc Trucker’s stiffness and maneuverability around corners. Add in improved fit and handling under load, plus captured thru-axles for tool-free removal and installation, and the Disc Trucker is ready to help you meet — or dodge — your daily obligations.

Dynamo routing on the fork, plus three-pack mounts on the blade and every braze-on you’ll ever need for racks, fenders, water bottle cages, and more
12mm thru-axles for a stiffer feel and increased stability when fully loaded
Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls
Flat-mount disc brakes
Frame sizes 56–64cm are available with 700c diameter wheels
Clearance 700c x 47mm with or without fenders

Specs:

Frame Surly Long Haul Trucker, 100% Surly 4130 CroMoly steel. Surly Long Haul Trucker, 100% Surly 4130 CroMoly steel. Main triangle double-butted. TIG-welded
Fork: Surly Long Haul Trucker, 4130 CroMoly, lugged and brazed. Proprietary sloping crown with threaded eyelets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets
Rear Hub Spacing 12x142 (Axle included)
Rear Axle Size Ø12 x 162, TP=1.5, TL=12
Front Hub Spacing 12x100 (Axle included)
Front Axle Size Ø12 x 118.5, TP=1.5, TL=12
Rear Brake Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
Front Brake Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
Head Tube Ø34mm Steerer Tube Ø28.6mm (1-1/8")
Crown Race Ø30mm (1-1/8")
Stock Headset Upper (S.H.I.S.) EC34/28.6
Stock Headset Lower (S.H.I.S.) EC34/30
Seat Collar Ø30mm
Seatpost Ø27.2mm
Front Derailleur (Clamp) Bottom-pull (Ø28.6mm)
Max Chainring (CL)[3] 1x (Road): 47T 2x (Road): 34/50T 3x (Road): 33/47/56T
Bottom Bracket 68mm threaded (1.37" x 24TPI)
Tire Clearance Frame [1]/[2] 26in: 26 x 2.1" (with or without fenders) 700c: 700c x 47mm (with or without fenders)
Tire Clearance Fork [1] 26in: 26 x 2.0" (with or without fenders) 700c: 700c x 50mm (with or without fenders) 700c: 29 x 2.0" (with or without fenders)
Bottle Mounts Frame 3 Standard
Bottle Mounts Fork 2 Three-Pack
Rack Mounts Frame Yes (upper and lower threaded)
Rack Mounts Fork Yes (upper, lower, and mid-blade threaded)
Fender Mounts Frame Yes
Fender Mounts Fork Yes
Other Features Seatstay mounted spoke holder Downtube mounted shifter bosses Surly removable kickstand plate included with complete bikes Uses rear flat mount standard for front brake

Just Frame + Fork. The pictures of the complete bike are just for showing purpose!
