Wolf Tooth - RoadLink

SKU: 4166
Category: Small Parts
Manufacturers: Wolf Tooth

Item currently out of stock

item not available, delievery time on request

Description
Notify me when this item is available

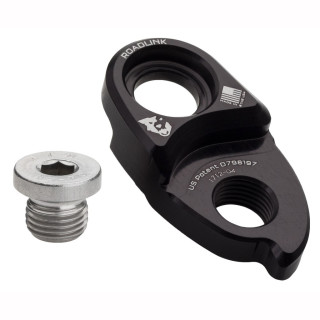

The RoadLink™ derailleur hanger extension is a unique patented device that offsets the position of your road derailleur to make it possible to run a wide-range mountain bike style cassette. It is an ideal solution for riders looking to convert their road, gravel, cyclocross, or commuter drivetrain bike to attain the simplicity and reduced weight of a single front chainring but without giving up the gear range of a double. It is also great for riders with double chainring bikes that want lower gearing for those ultra steep climbs. It does not compromise the shifting in the smaller cogs of the cassette but yet it enables the derailleur to work with as large as a 40T cassette.

Easily installed in less than 5 minutes by any home mechanic! For more technical details on the RoadLink™, checkout the RoadLink Tech Page. The RoadLink™ is optimized for use with ten or eleven-speed 11-36t and 11-40t cassettes and works great with Wolf Tooth’s 40-tooth GC cassette extenders and Drop-Stop chainrings.

The RoadLink™ RD adaper installs in minutes, is optimized around Shimano ten- or eleven-speed road derailleurs and shifters, but works well with SRAM and Campy too. It can be used with single or double chainrings. Here is a list of recommended applications:

Single Chainring:
- Road
- Cyclocross
- Commuting
- Drop-bar mountain

Double Chainring:
- Road
- Touring
- Drop-bar mountain

Compatibility:

10s Cassette Compatibility:
- 11-32: Not Required (GS medium cage rear derailleur works)
- 11-34: Single or double chainring
- 11-36: Single or double chainring (be sure to not exceed the derailleurs capacity)
- 11-40: Single or double chainring (be sure to not exceed the derailleurs capacity)
- 11-42: Not supported

11s Cassette Compatibility:
- 11-32: Not Required (GS medium cage rear derailleur works)
- 11-36: Single or double chainring (be sure to not exceed the derailleurs capacity)
- 11-40: Single or double chainring (be sure to not exceed the derailleurs capacity)
- 11-42: Not supported
- 10-42: Not supported

Double chainrings are only supported with GS (medium cage) rear derailleurs. You may need to change the front gearing so the rear derailleurs capacity is not exceeded.
The RoadLink™ mounts only to standard derailleur hangers.
The RoadLink™ is optimized for the 10 and 11 speed Shimano road derailleur geometry. It also works very well with 9 speed road groups, all SRAM groups, and Campy derailleurs! One note is that with Campy it works best with cassettes up to 11-36.
SRAMs Exact Actuation road shifters (10s and 11s) are interchangeable with their Exact Actuation mountain derailleurs - which can easily handle a 36 or 40 (and, for 1x, are available with a clutch) - and the CX1 will go even bigger with a single ring. If you already have SRAM, they also make nice front brake-only levers that match their rear shifters too.
Triple chainrings are not supported (medium cage rear derailleurs cannot accommodate that big of a range).
Direct Mount-native frames are not supported.
Due to the lack of a clutch mechanism on Shimano road derailleurs, secondary chain retention (front derailleur or chain device) may be needed, especially for rough or off-road use.
Due to variations in derailleur hanger geometry, chainstay length, chainring size, B-screw adjustment, and suspension configuration, individual results will vary.

Tech Specs:

Patented design Easy to install in less than 5 minutes
Manufactured in USA
Material - 6061 aluminum
Includes stainless steel bolt
8-10NM tightening torque Installation instructions - http://www.wolftoothcomponents.com/pages/roadlink-installation-instructions See the RoadLink Tech Page for more details
Colors - black
Weight - 17g
