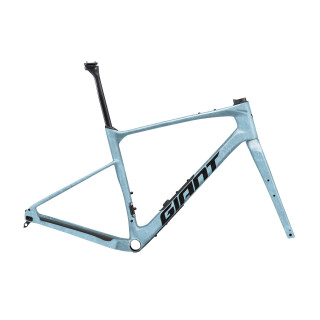

The Giant Revolt Advanced Pro frameset is the ideal base for gravel and bikepacking enthusiasts. It combines lightweight construction, smoothness, and versatility with smart frame accessories and racing geometry. Whether you're into ambitious off-road racing or extended adventures, with this frameset you'll build a gravel bike that's fun and ready for any terrain.
- Material: Advanced-Grade Carbon, monocoque construction
- Fork: Advanced SL Carbon, OverDrive Steerer
- Axles: 12x142mm rear / 12x100mm front thru-axles
- Brakes: Flat-Mount Disc Brakes
- Tire Clearance: up to 53mm (Flip-Chip long) or 45mm (short)
- Seatpost: D-Fuse SLR (30.9mm, integrated comfort)
- Extras: Flip-chip dropouts
Technologies:
-
Advanced Composite Technology: Giant's high-performance carbon fiber is used to manufacture this special carbon frame material, which is woven and processed in-house and offers an excellent stiffness-to-weight ratio. The front triangle is molded as a single piece. The modified monocoque construction eliminates the outer braided composite layer. This reduces weight without compromising ride quality, stability, or stiffness.
-
Compact Road Design: Introduced by Giant in the 1990s with the professional team ONCE, the Compact Road Design revolutionized the look of high-performance road bikes forever. A downward-sloping top tube creates smaller front and rear triangles for a lighter, stiffer bike. It makes it easier for riders of all sizes to achieve the perfect fit.
-
Flip-Chip Dropout:Allows riders to quickly adjust the ride by changing the rear tire clearance with an eccentric, two-position chip in the rear wheel dropout.
-
MegaDrive:The MegaDrive down tube, when combined with the Overdrive/Overdrive 2, increases frame stiffness. The diameter of the down tube is increased as much as possible. However, the thin walls keep the MegaDrive down tube very lightweight.
-
OverDrive: Giant's original oversized steerer tube. Built for steering precision, the extra-large headset bearings (1 1/4" lower, 1 1/8" upper for road, 1 1/2" lower and 1 1/8" upper for mountain) and the tapered steerer tube provide optimal front-end stiffness.
Product safety information
Manufacturer information:
GIANT Deutschland GmbH
Mettmanner Str. 25
Nordrhein-Westfalen
Erkrath, Deutschland, 40699
https://www.giant-bicycles.com/de/kontakt
https://www.giant-bicycles.com/de
| Rahmengrößen / Sizes |
S, M, M/L, L, XL |
| Rahmen / Frame |
Advanced Carbon Rahmen, Rahmen-Staufach, Flip Chip Ausfallende, 12x142 mm Max. Reifenfreiheit: 45mm (kurz), 53 mm (lang)
|
| Gabel / Fork |
Advanced SL Vollcarbon Gabel, OD1 Gabelschaft, 12x100 mm
|
| Sattelstütze / Seat Post |
GIANT Contact SLR D-Fuse Carbon mit 30.9 mm (auch Vario) Stützen kompatibel
|
| Zubehör / Accesories |
53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
|
| Farbe / Color |
Slate
|
Spezifikations-, Preis- und Farbänderungen vorbehalten.
PLEASE BE AWARE THERE CAN BE CHANGES DUE AVAILABILITY AND OTHER REASONS.
| |
S |
M
|
|
|
|
| |
Short | Long |
Short | LongShort | LongShort | LongShort | Long |
Short | Long |
Short | Long |
Short | Long |
| Sitzrohrlänge (Mitte - Oberkante) / Seat Tube Length (C-T) (mm) |
450 |
470 |
490 |
510 |
530 |
| Sitzrohrwinkel / Seat Angle |
73,5° |
73,5° |
73° |
73° |
73° |
| Steurohrlänge / Headtube Length (mm) |
135 |
150 |
165 |
180 |
195 |
| Steurohrwinkel / Head Angle |
71° |
71,5° |
72° |
72° |
72° |
| Oberrohrlänge / Top Tube Length (mm) |
550 |
560 |
575 |
585 |
600 |
| BB Drop |
80 | 81 |
80 | 8180 | 8180 | 81 |
80 | 81 |
80 | 81 |
80 | 81 |
| Kettenstrebenlänge / Chain Stay Length (mm) |
425 | 435 |
425 | 435 |
425 | 435 |
425 | 435 |
425 | 435 |
| Gabelvorbiegung / Fork Rake (mm) |
50 |
50 |
50 |
50 |
50 |
| Gabelnachlauf / Trail (mm) |
72 | 75 |
68 | 72 |
65 | 68 |
65 | 68 |
65 | 68 |
| Radstand / Wheelbase (mm) |
1020 | 1030 |
1026 | 1036 |
1031 | 1041 |
1041 | 1051 |
1056 | 1066 |
| Überstandshöhe / Standover (mm) |
740 | 747 |
757 | 764 |
774 | 780 |
791 | 797 |
807 | 814 |
| Reach (mm) |
381 |
387 |
391 |
397 |
407 |
| Stack (mm) |
570 |
586 |
602 |
616 |
630 |
| Vorbaulänge / Stem Length (mm) |
60 |
70 |
80 |
80 |
90 |
| Kurbellänge / Crank Arm Length (mm) |
170 |
172,5 |
172,5 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - Center) (mm) |
420 |
440 |
440 |
460 |
460 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
