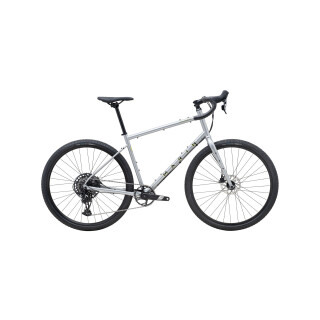

Commuters during the week, adventurers on the weekend: no problem for the Four Corners 2! The robust steel horse feels just as at home off the road as it does on the asphalt.
The geometry has been slightly revised. The changes compared to the previous model include a 0.5°; slacker head angle and a 10 mm shorter head tube, while the stack dimensions remained almost unchanged. The new models enable internal routing for lowerable seat posts. A wider handlebar, at 440-460mm, not only gives you more confidence off the road, but also provides a little more space for attaching bags and accessories.
The number of attachment points on the frame has been significantly increased. The numerous brackets are ideal for custom-made frame bags.
- Series 3 double butted CrMo frameset
- Thru axles front and rear
- Simple, wide-ranging SRAM 1x12-Speed Apex drivetrain
- powerful Apex 1 hydraulic disc brakes
- 44mm wide Vee Tire Rocket Man tubeless tires
- The frame can accommodate tires up to 50 mm wide
Product safety information
Manufacturer information:
Marin Bikes
1450 Technology Lane, Suite 100
Kalifornien
Petaluma, Vereinigte Staaten, 94954
https://www.marinbikes.com/de/contact-us
https://www.marinbikes.com
Responsible person:
Xazony Maly BV
Marketing 8
Duiven, Niederlande, 6921 RE
account@xazony.com
| Laufradgröße / Wheelsize |
Size XS,S = 650B, M,L,XL=700c |
| Rahmen / Frame |
Utilitour Double Butted CrMo, Biometric Geometry, Fender and Rack Mounts, Disc Mount |
| Gabel / Fork |
CrMo, Fender, Rack, and Bottle Cage Eyelets, IS Disc Mount |
| Lenker / Handlebar |
Marin Butted Alloy, Compact 12° Flared Drop |
| Griffe / Grips |
Marin Comfort Tape |
| Vorbau / Stem |
Marin 3D Forged Alloy |
| Steuersatz / Headset |
FSA No.42/ACB |
| Bremshebel / Brake Lever |
SRAM Apex 1 Hydraulic Disc |
| Schalthebel / Shifters |
SRAM Apex 1 1x12-Speed |
| Bremsen / Brakes |
SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor |
| Kurbel / Crank |
SRAM Apex 1, 40T |
| Innenlager / Bottom Bracket |
SRAM DUB BSA |
| Pedale / Pedals |
Marin Oso OEM Nylon Platform |
| Kette / Chain |
SRAM NX |
| Kassette / Cassette |
SRAM CS-XG-1275, 10-52T |
| Umwerfer / Front Derailleur |
- |
| Schaltwerk / Rear Derailleur |
SRAM Apex 1 12-Speed |
| Nabe, vorn / Hub front |
Forged Aluminum Alloy, 6-Bolt Disc, 32H |
| Nabe, hinten / Hub Rear |
Forged Aluminum Alloy, 6-Bolt Disc, 32H |
| Spokes / Speichen |
Stainless Steel 14g |
| Felgen / Rims |
Marin Aluminum Double Wall, 25mm Inner, Disc Specific, Tubeless-Compatible |
| Sattel / Saddle |
Marin Beyond Road Concept |
| Sattelstütze / Seat Post |
Marin Alloy, 27,2 mm |
| Sattelklemme / Seat Clamp |
- |
| Reifen / Tyre |
Vee Tire Co., Rocket Man, 650/700x44, Tubeless-Compatible |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
|
| Licht / Light |
- |
| Gewicht / Weight |
- |
| |
|
| |
XS (650b) |
S (650b)
|
|
|
|
| Sitzrohrlänge (C-T) / Seat Tube Length |
381 |
422 |
462 |
495 |
528 |
| Sitzrohrwinkel (°) / Seat Angle |
74,5 |
73,5 |
73,5 |
72,5 |
72 |
| Steurohrlänge / Headtube Length |
167 |
188 |
188 |
209 |
252 |
| Steurohrwinkel (°) / Head Angle |
70 |
70 |
70 |
71 |
71 |
| Oberrohrlänge (effektiv) / Top Tube Length (effective) |
532 |
553 |
586 |
617 |
647 |
| BB Drop |
53,5 |
53,5 |
72 |
72 |
72 |
| Kettenstrebenlänge / Chain Stay Length |
432 |
432 |
450 |
450 |
450 |
| Fork Offset |
43 |
43 |
49 |
49 |
49 |
| Radstand / Wheelbase |
1035 |
1047 |
1087 |
1107 |
1132 |
| Überstandshöhe / Standover |
668 |
707 |
745 |
777 |
810 |
| Reach |
376,7 |
381 |
403,3 |
412,6 |
426,6 |
| Stack |
560 |
580 |
618 |
648 |
679 |
| Vorbaulänge / Stem Length |
70 |
70 |
70 |
70 |
70 |
| Kurbellänge / Crank Arm Length |
170 |
170 |
170 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - center) |
440 |
440 |
460 |
460 |
460 |
