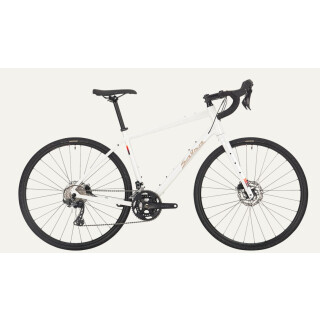

The Journeyer GRX 600 700c brings elegance to rough roads. The all-new aluminum frame offers greater stability and more features for riders exploring mixed-surface riding. The Waxwing carbon fork provides optimal compliance for rough gravel. Fender mounts and rack options allow you to customize the Journeyer to your riding style.
Salsa uses alloy tubes specifically developed for the Journeyer frame, which are then heat-treated to T6 alloy standards for added strength and durability. The 12 x 142 mm thru-axle ensures frame rigidity, improved tracking, and consistent wheel positioning.
The Waxwing fork is made of carbon with an aluminum steerer tube. The 12 x 100 mm thru-axle provides stiffness at the front axle and guarantees optimal steering precision. Designed for high load capacity, the Waxwing features two Three-Pack mounts and a rack mount in the center of the fork blade. The internal cable routing of the hub dynamo and the fender mounts facilitate riding in all conditions. The generous tire clearance of 700c x 50 mm or 650b x 56.5 mm (27.5 x 2.25 inches) allows for the use of a wide variety of wheels and tires. An abrasion-resistant plate on the inside of the fork protects against wear. through mud and other road debris.
- Frame: Journeyer, drop handlebar, with thru-axle
- Color: White
- Fork: Waxwing
- Crankset: Shimano GRX RX600, 46/30 teeth
- Rear derailleur: Shimano GRX RX810
- Cassette: Shimano HG700, 11-34 teeth, 11-speed
- Tires: Teravail Washburn, 700c x 38 mm, 60 tpi, light and supple casing, tubeless ready
Product safety information
Manufacturer information:
Salsa Cycles
6400 West 105th Street
Minnesota
Bloomington, Vereinigte Staaten, 55438
support@salsacycles.com
https://www.salsacycles.com/
Responsible person:
Cosmic Sports GmbH
Leyher Str. 47
Bayern
Fürth, Deutschland, 90763
info@cosmicsports.de
https://www.cosmicsports.de
| Laufradgröße / Wheelsize |
700c |
| Rahmen / Frame |
Journeyer Drop Bar Thru-Axle |
| Gabel / Fork |
Waxwing Carbon |
| Lenker / Handlebar |
Salsa Cowbell 3, 31,8mm |
| Griffe / Grips |
Black Cork |
| Vorbau / Stem |
Salsa Guide 31,8mm, 6-degree |
| Steuersatz / Headset |
FSA NO.42 ACB IS-2 |
| Bremshebel / Brake Lever |
Shimano GRX RX600 |
| Schalthebel / Shifters |
Shimano GRX RX600 |
| Bremsen / Brakes |
Shimano GRX RX400 160 mmm |
| Kurbel / Crank |
Shimano GRX RX600 46/30t |
| Innenlager / Bottom Bracket |
68 mm BSA |
| Pedale / Pedals |
- |
| Kette / Chain |
Shimano HG601 |
| Kassette / Cassette |
Shimano HG700, 11-34t, 11-speed |
| Umwerfer / Front Derailleur |
Shimano GRX RX810 |
| Schaltwerk / Rear Derailleur |
Shimano GRX RX810 |
| Nabe, vorn / Hub front |
Shimano Tiagra RS470 28h, 12 x 100 mm hub |
| Nabe, hinten / Hub Rear |
Shimano Tiagra RS470, 28h, 12x142 mm hub |
| Spokes / Speichen |
Stainless Steel 2,0mm |
| Felgen / Rims |
WTB ST i23, 700c |
| Sattel / Saddle |
WTB Volt Medium 142x265mm |
| Sattelstütze / Seat Post |
Salsa Guide 27.2x350mm |
| Sattelklemme / Seat Clamp |
32,0mm |
| Reifen / Tire |
Teravail Washburn, 700c x 38mm, 60 tpi, Light and Supple casing, Tubeless Ready |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
- |
| Licht / Light |
- |
| Gewicht / Weight |
23 lb (58 cm)
|
| |
|
| |
49 cm |
51 cm
|
|
|
|
60 cm |
| Sitzrohrlänge (C-T) / Seat Tube Length |
340 |
380 |
410 |
450 |
490 |
520 |
| Sitzrohrwinkel (°) / Seat Angle |
76° |
75° |
74° |
73° |
73° |
73° |
| Steurohrlänge / Headtube Length |
90 |
105 |
130 |
150 |
180 |
210 |
| Steurohrwinkel (°) / Head Angle |
68,5° |
69,5° |
69,5° |
69,5° |
69,5° |
69,5° |
| Oberrohrlänge (effektiv) / Top Tube Length (effective) |
493 |
510 |
530 |
550 |
570 |
600 |
| BB Drop |
70 |
70 |
70 |
70 |
70 |
70 |
| Kettenstrebenlänge / Chain Stay Length |
440 |
440 |
440 |
440 |
440 |
440 |
| Fork Offset |
50 |
50 |
50 |
50 |
50 |
50 |
| Radstand / Wheelbase |
1027 |
1028 |
1040 |
1051 |
1072 |
1104 |
| Überstandshöhe / Standover |
613,5 |
648,5 |
684,5 |
720,5 |
756,5 |
803,5 |
| Reach |
366 |
368 |
372 |
376 |
387 |
408 |
| Stack |
510 |
528 |
552 |
570 |
599 |
627 |
| Vorbaulänge / Stem Length |
60 |
70 |
80 |
80 |
90 |
100 |
| Kurbellänge / Crank Arm Length |
165 |
165 |
170 |
172,5 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - center) |
38 |
40 |
42 |
44 |
46 |
46 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated Irrtümer vorbehalten / Errors excepted
