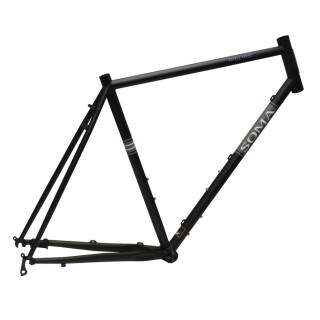

Lately the gravel bike has become the new king of “ride-it-all”. become. With just a few changes to the bottom bracket height and head tube angle, Soma has made the Double Cross more stable for gravel and touring. It offers more fun. on trails and is still a versatile and fast commuter.
- Main Frame: Tange Prestige heat-treated CrMo steel front triangle; butted CrMo rear end
- Fork: Straight blade unicrown Tange Infinity CrMo steel CX fork with triple bosses to fit cargo cages or low rider pannier rack
- The disc mount is located on the chainstay, so almost any luggage rack or mudguard can be attached to it without fear of interference. The rear disc brake mount is now “Flat Mount” and fits 140 mm brake discs (160 mm with adapter).
- Optional color-matched fork: Unicrown CrMo straight blade fork with three bosses to accommodate a utility cage or luggage rack.
- Clearance for 700x45c tires (40c w/fenders. Some front derailleurs may reduce this clearance) We recommend 650b/27.5" wheels for 42cm size to reduce toe overlap with the front Wheel)
- Rear rack and fender eyelets
- 1-1/8" size headtube ((fits EC34/28.6|EC34/30 headsets))
- Front derailleur: 28.6mm ID, bottom pull
- Seatpost: 27.2mm
- Seat collar: 29.8 or 30.0mm (not included)
- Hub rear spacing: 135mm, use traditional QR MTB hubs
- Brakes: Flat Mount
- Bottom bracket shell: 68mm wide, English threads
- Downtube shifters: Mounts available
- Water bottle bosses: 3 sets on frame
- Rack and Fender mounts: We recommend using the eyelets located on the dropouts for racks. Do not use the lower set of seatstay bosses for racks unless it is for loads under 12 lbs. Either eyelet or boss set can be used for fenders.
- Max. weight with rider and load: 270 lbs.
- Color: Matte Black
