Bridge Club is for those multi-surface outings — planned or unplanned. We've all run out the clock on a dirt tour and had to add in some paved shortcuts. Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.
Some people hear "bike touring" and immediately think of long-forgotten stretches of highway, small-town oddities, and roadside attractions. Some instantly recall desolate stretches of desert dirt roads or lush green forest trails. With Bridge Club, you can have your dessert and eat it too!
Features
- Ultra-focused on simplicity, it only has the barnacles that matter most to the discerning bike tourist
- Two build kit options: Pavement (700c) and Off-Road (27.5)
- Run racks and panniers, framebags, or all of the above
- Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category
- Clearance for 700 x 47mm tires (with or without fenders), 27.5 x 2.8” tires (27.5 x 2.6” with fenders), and 26 x 3” tires (26 x 2.8” with fenders)
Specs
- Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
- Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
- Rear Dropout Configuration Vertical
- Rear Hub Spacing "Gnot-Boost" 138mm 10 x 135mm or 10 x 141mm
- Front Hub Spacing 10 x 100mm
- Rear Brake Disc - 51mm I.S. (180mm max rotor)
- Front Brake Disc - 51mm I.S. (203mm max rotor)
- Head Tube Ø34mm Steerer Tube Ø28.6mm (1-1/8")
- Crown Race Ø30mm (1-1/8")
- Stock Headset Upper (S.H.I.S.) EC34/28.6 Stock Headset Lower (S.H.I.S.) EC34/30
- Seat Collar Ø30mm
- Seatpost Ø27.2mm
- Front Derailleur (Clamp) High direct mount top-pull (Ø28.6mm) 26mm offset adapter (not included) for 135mm rear hub spacing 29mm offset adapter (not included) for 141mm rear hub spacing
- Max Chainring (CL)[3] 1x (Mtn): 34T 2x (Mtn): 26/40T 3x (Mtn): 22/36/44T 1x (Boost): 40T 2x (Boost): 32/42T
- Bottom Bracket 73mm threaded (1.37" x 24TPI)
- Tire Clearance Frame [1]/[2] 26 x 3.0" (26 x 2.8" with fenders) 27.5 x 2.8" (27.5 x 2.6" with fenders) 700c x 47 with or without fenders
- Tire Clearance Fork [1] 26 x 3.0" (26 x 2.8" with fenders) 27.5 x 2.8" (27.5 x 2.6" with fenders) 700c x 47 with or without fenders Rigid Fork Spec 420 x 43mm
- Max Suspension Fork Length [4] N/A
- Bottle Mounts Frame 2 Three-Pack (XS) 1 Standard + 2 Three-Pack (S - XL)
- Bottle Mounts Fork 2 Three-Pack
- Rack Mounts Frame Yes (upper and lower threaded)
- Rack Mounts Fork Yes (upper, lower, and mid-blade threaded)
- Fender Mounts Frame Yes
- Fender Mounts Fork Yes

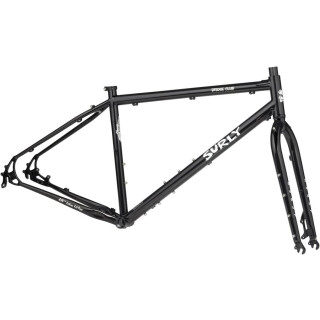

Just Frame + Fork. The pictures of the complete bike are just for showing purpose!
