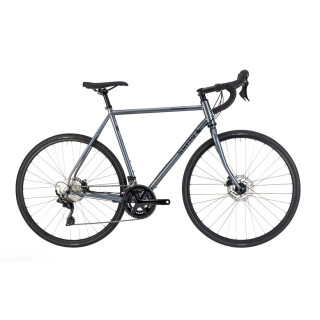

A Road Plus bike that masters both asphalt and gravel.
The Midnight Special shines on pothole-riddled, deteriorating asphalt and occasional long stretches of gravel.
Its 700c tires soak up road noise and absorb every bump in the road like the champion it was designed to be.
- Higher-volume tires allow for better fine-tuning of tire pressure across various surfaces and create a wider contact patch for increased traction
- Modern road standards such as flat-mount disc brakes, 12mm thru-axles (front and rear), and a 44mm head tube
- Clearance for 650b x 60mm or 700c x 42mm tires without fenders (650b x 50mm or 700c x 38mm with fenders)
- Frame construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG-welded, ED-coated
- Fork construction: 4130 Chromoly, Natch tubing, TIG-welded, brazed mounts, ED-coated
- Tires: Teravail Rampart 700 x 38 Light and Supple
Specifications:
- Rear hub spacing:
- 12 x 142mm (Surly axle included)
- 10 x 135mm with Surly 10/12 adapter washers (not included)
- Spacing of the Front hub: 12 x 100 mm (Surly axle included)
- Brake mount: Flat-mount disc brake (max. 160 mm rotor) – 25 mm thick mount / 32 mm bolt length
- Mounting options: Fenders + front & rear racks / 3x bottle cage mounts / bosses for downtube shifters
- Seatpost diameter: Ø27.2 mm
- Seat clamp size: Ø30 mm
- Head tube size: Ø44 mm
- Steerer tube: Ø28.6 mm (1-1/8")
- Upper headset standard (S.H.I.S.): ZS44/28.6
- Lower headset standard (S.H.I.S.): EC44/30
- Bottom bracket threading: 68 mm BSA
- Max. chainring (CL)[3]:
- 1x (Road): 44 teeth
- 2x (Road): 34/50 teeth
- 3x (Road): 30/39/50 teeth
- Bottom bracket: 68 mm threaded (1.37" x 24 TPI)
- Frame tire clearance [1]/[2]:
- 27.5 x 2.35" (without mudguards)
- 700c x 42 mm (without mudguards)
- 650b x 50 (with mudguards)
- 700c x 38 mm (with mudguards)
- Fork tire clearance [1]:
- 27.5 x 2.35" (without mudguards)
- 700c x 42 mm (without mudguards)
- 650b x 50 (with mudguards)
- 700c x 38 mm (with mudguards)
- Rigid fork specifications:
- 400 x 50 mm (40 - 54 cm)
- 400 x 40 mm (56 - 64 cm)
- Color: Stainless Teal
Product safety information
Manufacturer information:
Surly Bikes
6400 W 105th Street
Minnesota
Bloomington, Vereinigte Staaten, 55438
derby@surlybikes.com
https://www.surlybikes.com
Responsible person:
Cosmic Sports GmbH
Leyher Str. 47
Bayern
Fürth, Deutschland, 90763
info@cosmicsports.de
https://www.cosmicsports.de
| Laufradgröße / Wheelsize |
700c |
| Rahmen / Frame |
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
| Gabel / Fork |
- 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, ED coated
|
| Lenker / Handlebar |
Teravail Radia |
| Griffe / Grips |
Velo Black Cork |
| Vorbau / Stem |
Teravail Radia |
| Steuersatz / Headset |
FSA Orbit ITA |
| Bremshebel / Brake Lever |
- Shimano Tiagra R4020
|
| Schalthebel / Shifters |
- Shimano Tiagra R4020
|
| Bremsen / Brakes |
Shimano Tiagra RS405 |
| Kurbel / Crank |
Shimano Tiagra R4000, 50-34t |
| Innenlager / Bottom Bracket |
Shimano RS501 BSA |
| Pedale / Pedals |
- |
| Kette / Chain |
Shimano LG500 |
| Kassette / Cassette |
Shimano CUES RS400, 11-36t, 11-speed |
| Umwerfer / Front Derailleur |
Shimano Tiagra R4000 |
| Schaltwerk / Rear Derailleur |
Shimano Tiagra R4000 |
| Nabe, vorn / Hub front |
Novatec 12x100mm 12 x 100 mm thru-axle,32h |
| Nabe, hinten / Hub Rear |
Novatec 12 x 142 mm thru-axle, 32h |
| Spokes / Speichen |
DT Swiss Champion 14G |
| Felgen / Rims |
Alex Adventurer 2, 700c, 32h, tubeless ready |
| Sattel / Saddle |
WTB Volt |
| Sattelstütze / Seat Post |
Promax SP-2019, 27,2 x 300 (12mm offset on 54-64 cm) |
| Sattelklemme / Seat Clamp |
30.0mm Surly Stainless |
| Reifen / Tire |
Teravail Rampart 700 x 35 Light and Supple, Tubeless Ready |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
- |
| Licht / Light |
- |
| Gewicht / Weight |
12,25 kg (56cm) |
| |
|
| |
40 cm
|
|
50 cm |
54 cm |
56 cm |
|
|
64 cm |
| |
|
|
| Sitzrohrlänge / Seat Tube Length |
400 |
460 |
500 |
540 |
560 |
580 |
600 |
640 |
| Oberrohrlänge / Top Tube Length (effective) |
500 |
520 |
540 |
555 |
570 |
585 |
605 |
625 |
| Sitzrohrwinkel (°) / Seat Angle |
75,5° |
74° |
73,5° |
73,5° |
73° |
73° |
72,5° |
72,5° |
| Steuerohrwinkel / Head Angle (°) |
71° |
71,5° |
72° |
72,5° |
73° |
73° |
73,5° |
74° |
| Steuerohrlänge / Headtube Length |
95 |
100 |
110 |
125 |
140 |
160 |
180 |
200 |
| BB Drop |
70 |
70 |
65 |
65 |
65 |
65 |
65 |
65 |
| Kettenstrebenlänge / Chain Stay Length |
425 |
425 |
425 |
425 |
425 |
425 |
425 |
425 |
| Gabelvorbiegung / Fork Offset |
50 |
50 |
50 |
50 |
40 |
40 |
40 |
40 |
| Radstand / Wheelbase |
993 |
994 |
1007 |
1018 |
1012 |
1027 |
1036 |
1050 |
| Überstandshöhe / Standover |
720 |
751 |
778 |
806 |
827 |
846 |
866 |
895 |
| Reach |
363 |
366 |
379 |
389 |
393 |
402 |
409 |
423 |
| Stack |
531 |
538 |
544 |
560 |
580 |
599 |
620 |
641 |
| Kurbellänge / Crank Arm Length |
165 |
170 |
170 |
175 |
175 |
175 |
175 |
175 |
| Lenkerbreite / Handlebar Width |
400 |
400 |
400 |
420 |
440 |
440 |
460 |
460 |
| Vorbaulänge / Stem Length |
70 |
80 |
80 |
100 |
100 |
120 |
120 |
120 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
