Midnight Special shines on pot-holed, deteriorating pavement and the occasional long stretch of gravel. Its 650b road plus tires eat up road chatter and absorb all the bumps in the road like the champion it was designed to be.
When it comes to road bikes, we just want to toss a few bananas into our pockets and see where the road takes us. We seek out varied surfaces on our rides and frequently go from pavement to gravel to shittier pavement. Midnight Special allows us to accomplish all of that quite comfortably.
- Tubing 4130 CroMoly, doubl-butted main triangle, ED coated, TIG-welded
- Rear Dropouts 142 x 12mm thru, vertical drop-out, integrated derailleur hanger
- Brake Compatibility 140-160mm flat mount disc
- Braze-ons/extras Front and rear fender and rack mounts, down tube and seat tube water bottle mounts, DT shifter bosses
- Seatpost diameter 27.2mm
- Seatpost clamp diameter 30.0mm
- Headset/Steerer Tube 44mm head tube, 1-1/8 steerer tube
- Front Derailleur Clamp Diameter 28.6mm
- Bottom bracket shell 68mm threaded
- Chainring Clearance 1x: 44t max 2x: 34/50t max
- Tire Clearance 27.5 x 2.35in (650b x 60 mm) w/o fenders 700 x 42mm w/o fenders
- Fork100 x 12mm thru, flat mount disc,

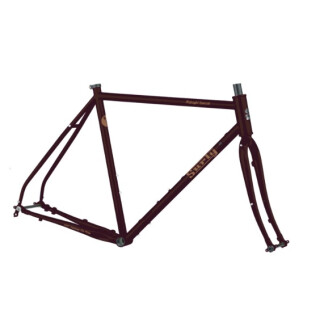

Included in delievery is only the frameset (frame + fork + seatclamp). Pictures of the complete bike are just for showing purpose!
Product safety information
Manufacturer information:
Surly Bikes
6400 W 105th Street
Minnesota
Bloomington, Vereinigte Staaten, 55438
derby@surlybikes.com
https://www.surlybikes.com
Responsible person:
Cosmic Sports GmbH
Leyher Str. 47
Bayern
Fürth, Deutschland, 90763
info@cosmicsports.de
https://www.cosmicsports.de
| |
40 cm
|
|
50 cm |
54 cm |
56 cm |
|
|
64 cm |
| |
|
|
| Sitzrohrlänge / Seat Tube Length |
400 |
460 |
500 |
540 |
560 |
580 |
600 |
640 |
| Oberrohrlänge / Top Tube Length (effective) |
500 |
520 |
540 |
555 |
570 |
585 |
605 |
625 |
| Sitzrohrwinkel (°) / Seat Angle |
75,5° |
74° |
73,5° |
73,5° |
73° |
73° |
72,5° |
72,5° |
| Steuerohrwinkel / Head Angle (°) |
71° |
71,5° |
72° |
72,5° |
73° |
73° |
73,5° |
74° |
| Steuerohrlänge / Headtube Length |
95 |
100 |
110 |
125 |
140 |
160 |
180 |
200 |
| BB Drop |
70 |
70 |
65 |
65 |
65 |
65 |
65 |
65 |
| Kettenstrebenlänge / Chain Stay Length |
425 |
425 |
425 |
425 |
425 |
425 |
425 |
425 |
| Gabelvorbiegung / Fork Offset |
50 |
50 |
50 |
50 |
40 |
40 |
40 |
40 |
| Radstand / Wheelbase |
993 |
994 |
1007 |
1018 |
1012 |
1027 |
1036 |
1050 |
| Überstandshöhe / Standover |
720 |
751 |
778 |
806 |
827 |
846 |
866 |
895 |
| Reach |
363 |
366 |
379 |
389 |
393 |
402 |
409 |
423 |
| Stack |
531 |
538 |
544 |
560 |
580 |
599 |
620 |
641 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
